Up to 630W High Power Output
High Energy Yield
Ultra-Low Degradation for Long-Term Stability
Reliable Performance in Harsh Environments

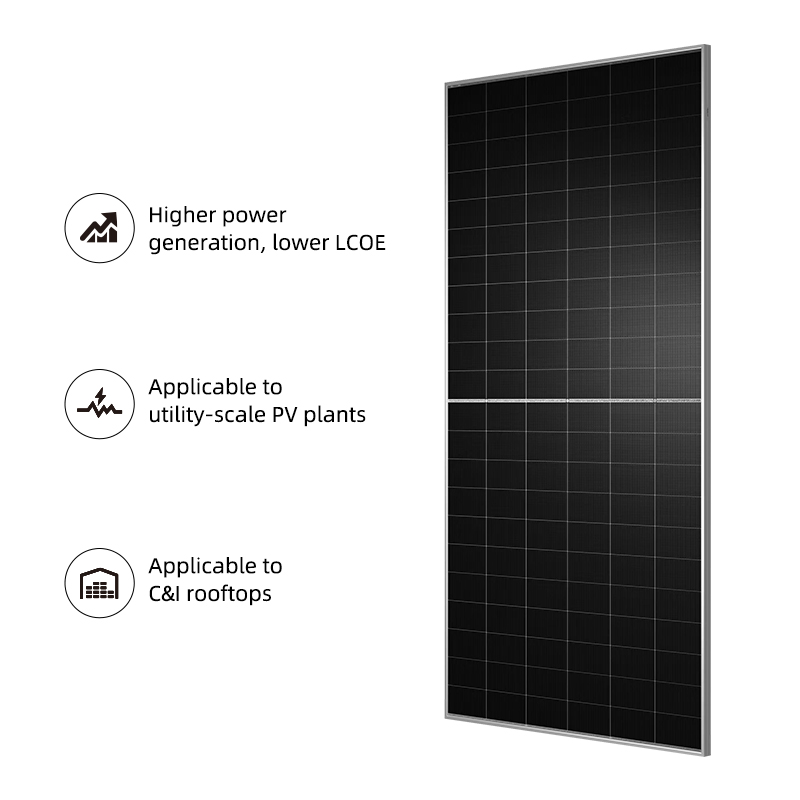

Lower LCOE, Higher Return on Investment
Model Number :
TWMNH-66HD 610-630W
Type :
N-type Half-cell Bifacial Module
Brand :
TongWei
Warranty :
12 years product warranty, 30 years linear power warranty
Certifications :
ISO9001:2015/ISO14001:2015/IEC 61215 / IEC 61730, etc

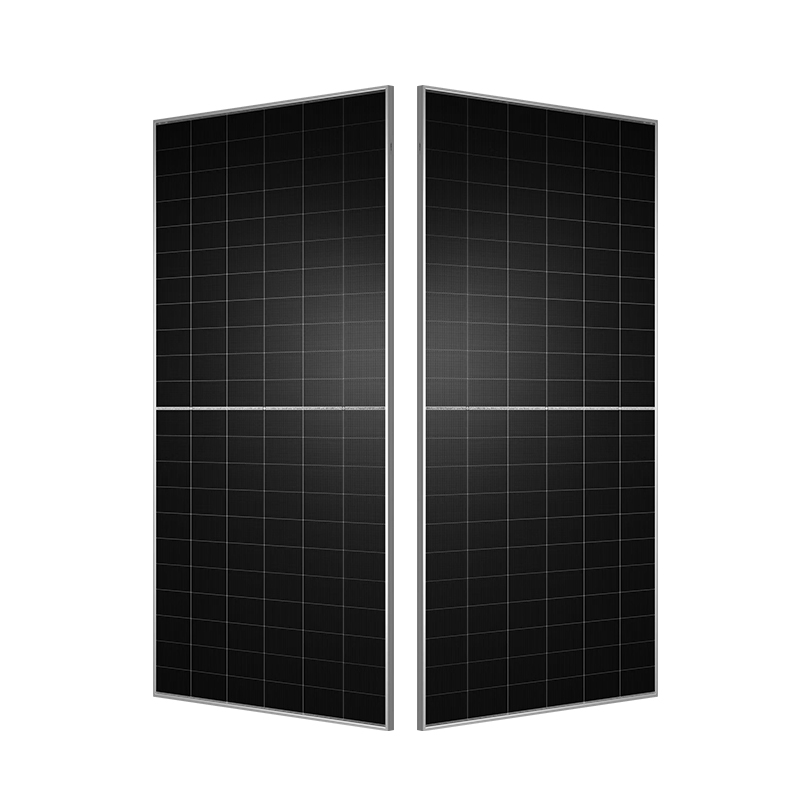

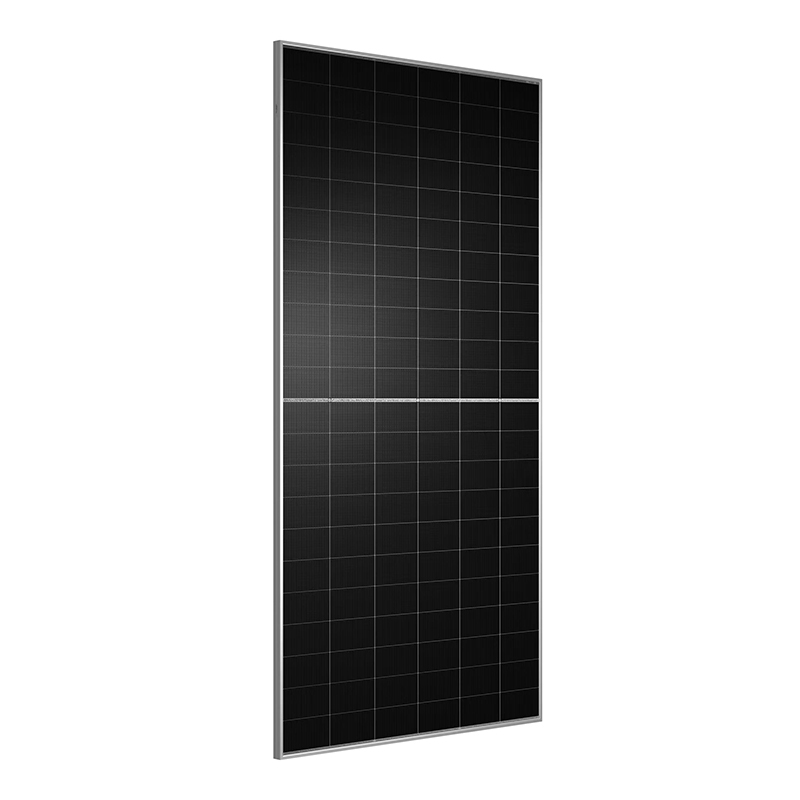

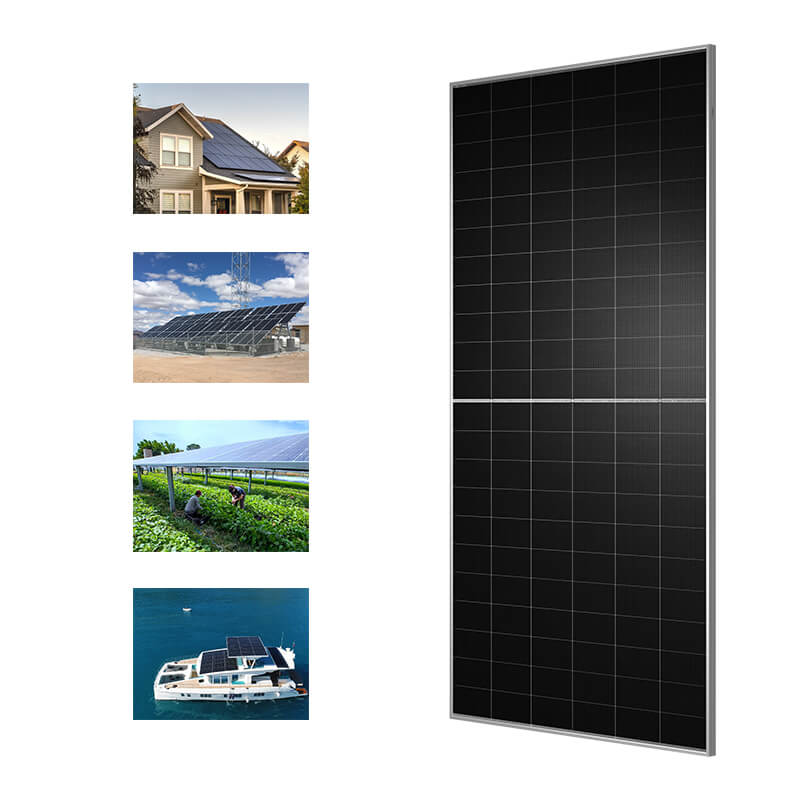

TWMNH-66HD N-Type Bifacial High-Efficiency Solar Module
Key Features
Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability.
Longer Life-time Power Yield
0.40% annual power degradation and 30 year linear power warranty.
Reduced Hot Spot Loss
Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

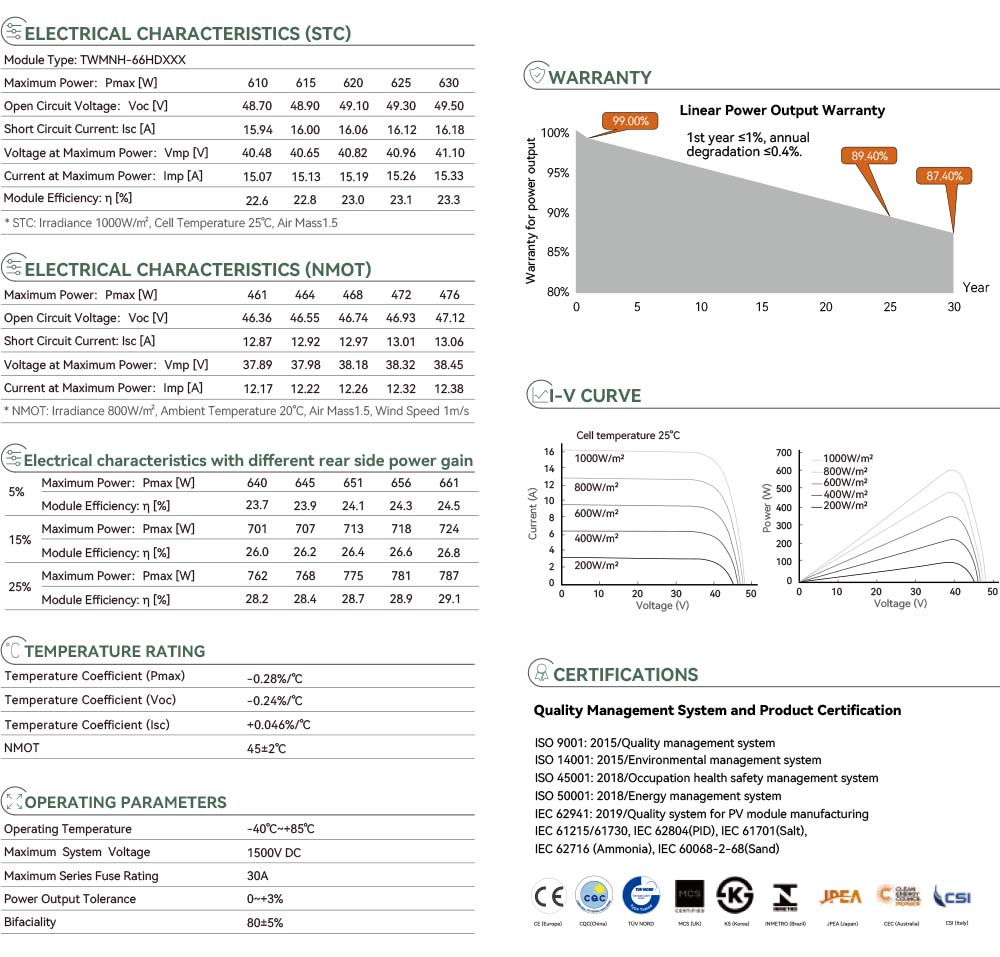

| Cell Type | TNC |
| Cell Orientation | 132 [6×22] |
| Dimension | 2382±2×1134±2×30mm |
| Weight | 32.5kg |
| Front Glass | 2.0 mm AR coating semi tempered glass |
| Rear Glass | 2.0 mm semi tempered glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68, 3 diodes |
| Cable | 4.0mm2 |
| Cable Length | +400 mm, -200 mm or ±1,400 mm; length can be customized |
| Maximum Static Test Load | 5,400 Pa (front) / 2,400 Pa (rear) |
| Packaging (Per pallet) | 36 pcs |
| Packaging | 720 pcs per 40'HC |

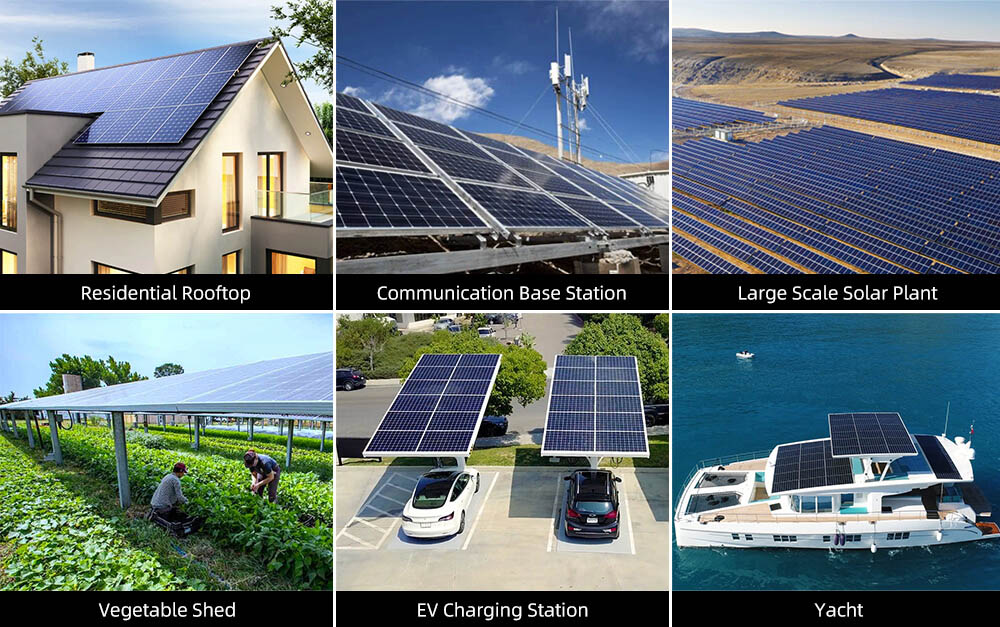

Product Applications

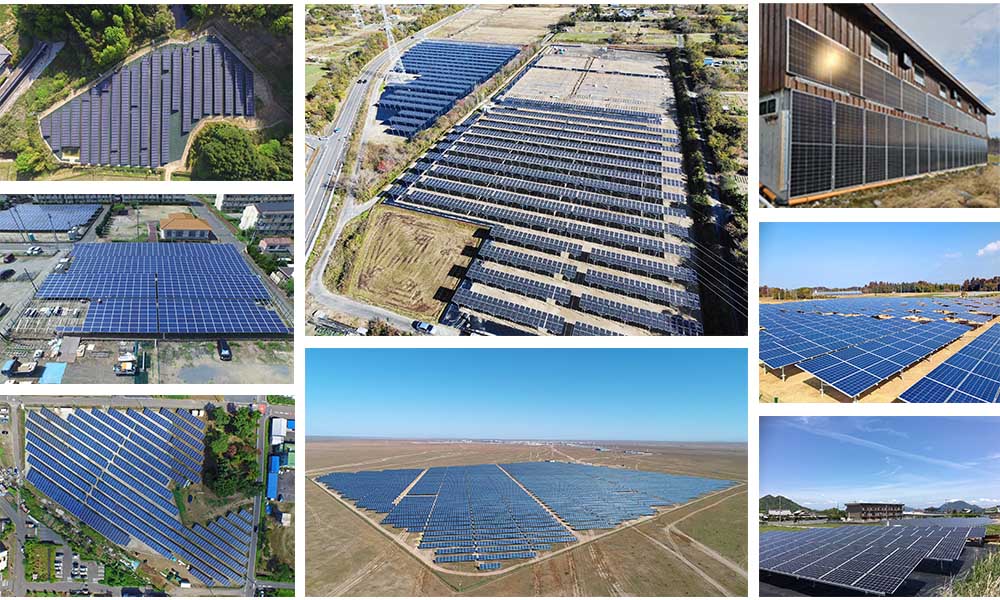

Projects
