● High Safety：The use of the most advanced lithium iron phosphate battery core technology.
● Easy to Expand: Multi-parallel Configuration, up to 16sets (81.92kWh).
● Long Life：≧6000 cycles.
● Advanced BMS Control.
● Compatible with mainstream brand inverters: Victron/SMA/Goodwe/Imeon/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye etc.
Capacity :
5.12kWh
Nominal Voltage :
51.2 V
Rated Capacity :
100Ah
Cycle Life :
≥6000
Dimensions (H*W*D):
480*460*155.5mm
Warranty :
10 Years

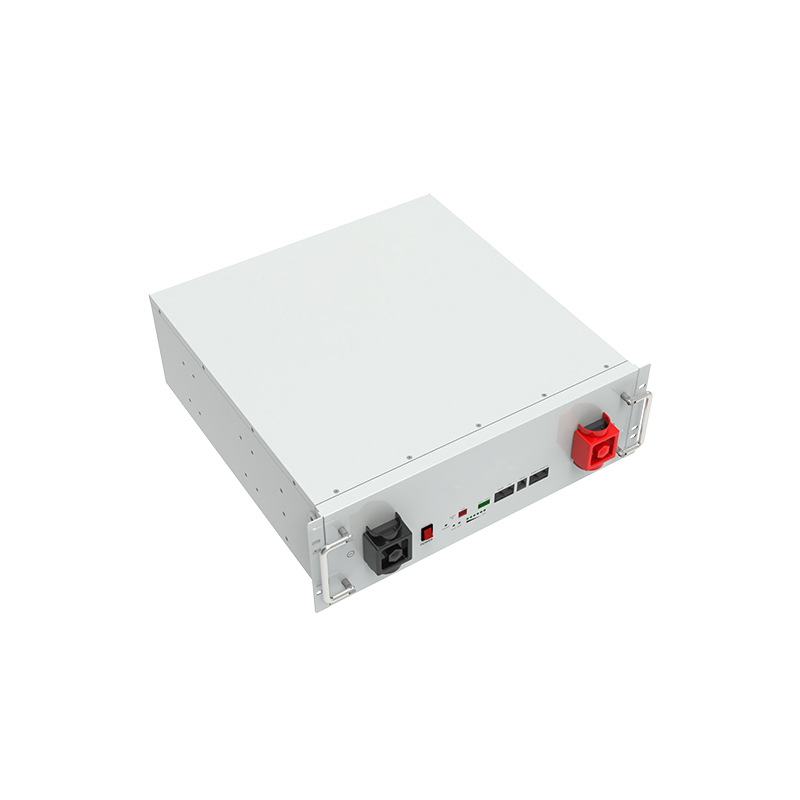

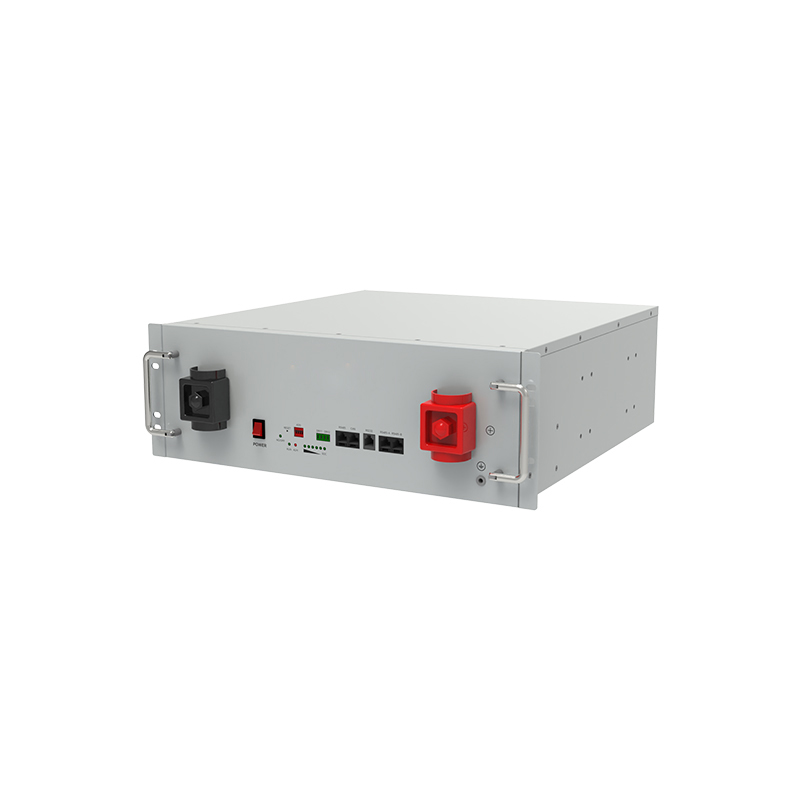

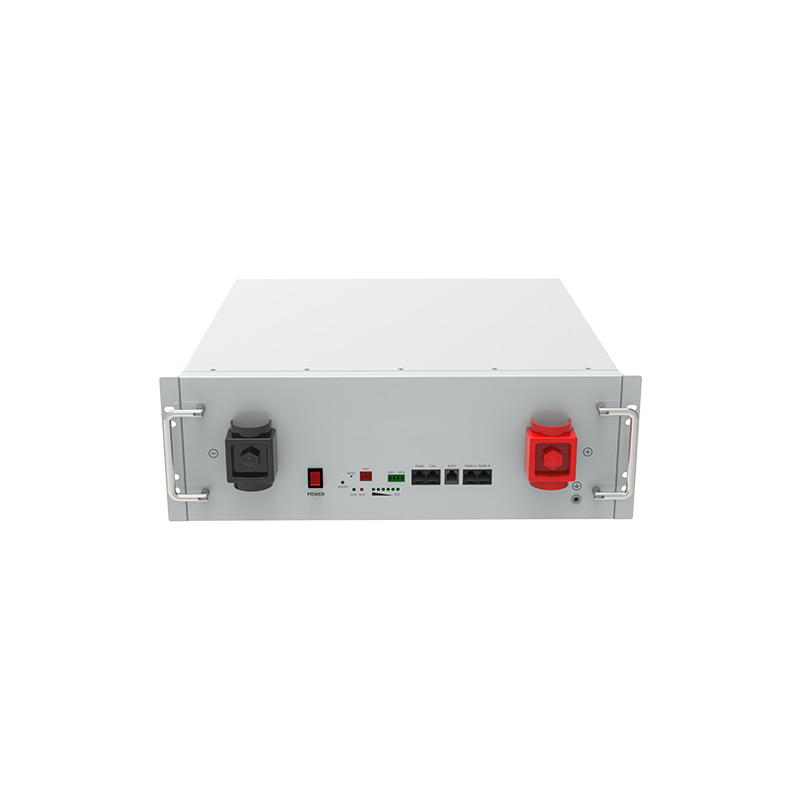

HUANIU Stackable LiFePO4 Battery
With easy installation and a minimalist design, Movable module lithium battery complements a variety of home styles. The battery capacity can be increased freely and flexibly according to the situation of home use. The battery cell uses the best safety LiFePO4 battery to save costs. Easy installation, according the power storage needs and combine different batteries pack..
Key Features
Easy to Expand
Say goodbye to energy worries! Maximum Number Of Combinations /Total Power: ×16(81.92kWh), Say hello to an energy solution that grows with you.
High Performance
Unleash the power! With a cycle life of ≥ 6000 cycles, experience unbeatable durability and performance. Your energy solution is built to last.
Sustainability
Do your part to reduce your carbon footprint. HUANIU Lithium Batteries promote cleaner energy use and contribute to a more sustainable environment.
Energy Independence
Harnessing the power of the sun! Use the fast-charging feature of HUANIU LiFePO4 Lithium Batteries to store excess solar energy during the day and use it at night.
| Type | B51100 | |
| Battery Type | LiFePO4 | |
| Nominal Voltage | 51.2 V | |
| Rated Capacity | 100 Ah | |
| Capacity | 5.12kWh | |
| Rated Charging / Discharging Current | 100A/100A | |
| Max. Discharge Continuous Current | 100A | |
| Battery Max. Charge / Discharge Power | 100A/100A | |
| Peak Discharge Current / Power | 200A(5s) | |
| Available SOC Range | 0-100% | |
| Dimension | 480*460*155.5mm | |
| Weight | 42.5kg | |
| Operating Temperature | Charging Temperature:0-50℃ / 32°F~ 122 °F Discharge Temperature:-20-60℃ / -4°F~ 140 °F | |
| Storage Temperature | -10°C~50°C | |
| Working Humidity | 0~90% | |
| Communication | CAN / RS485 | |
| Cycle Life | >6000 | |
| Warranty | 10 Years | |
| IP Rating | IP20 | |
| Certification | IEC62619 / UL1973 / UL9540A / CE-EMC / UN38.3 / FCC | |

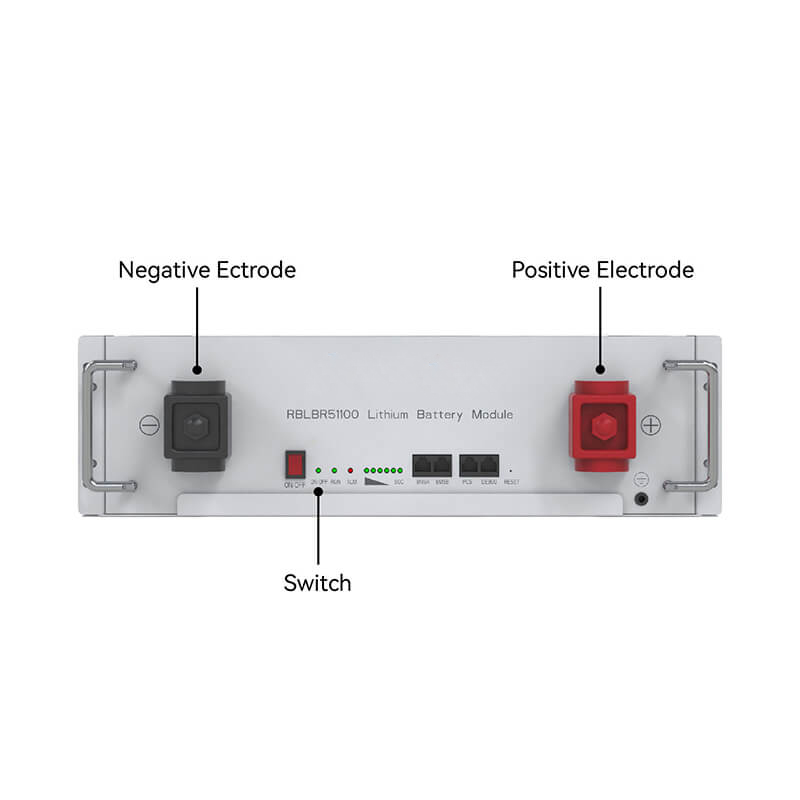

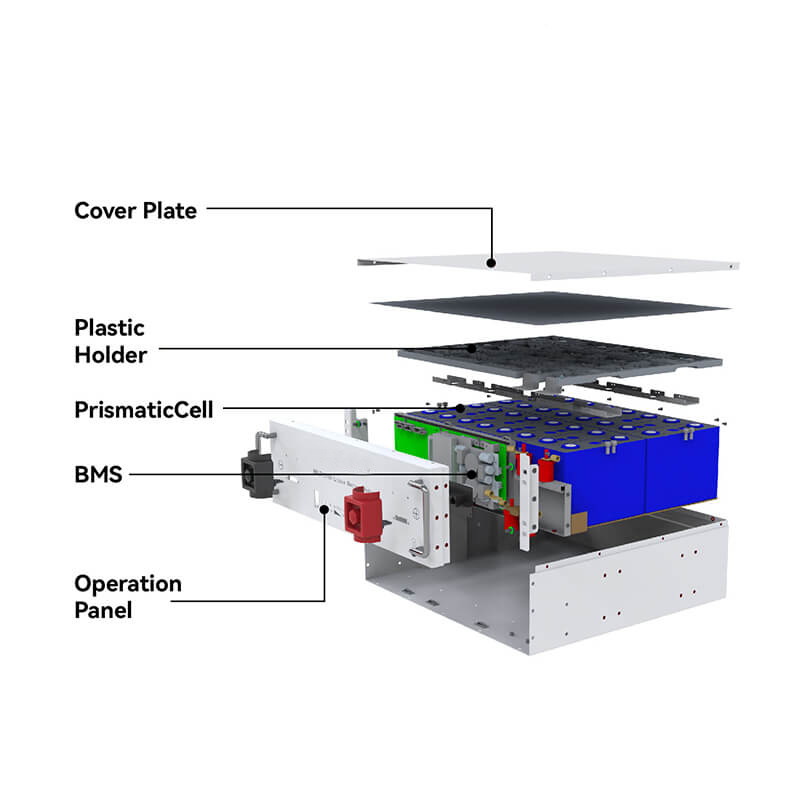

Product Structure
Product Size
Wide Compatibility
Compatible with mainstream brand inverters: Growatt, Deye, Victron, Aiswei, Afore, SRNE, MEGAREVO…
Production Process
Product Packing & Delivery
