● Cycle life: 6000 times.
● Waterproof and Dustproof: IP65.
● Advanced BMS Control.
● Advanced lithium iron phosphate technology.
● Maximum Number Of Combinations / Total Power: ×5(25.6kWh).
● Compatible with mainstream brands of inverters.
● Certification: IEC62619 / UL1973 / UL9540A / CE-EMC / UN38.3 / FCC.
Capacity :
20.4kWh
Nominal Voltage:
409.6V
Rated Capacity :
50Ah
Cycle Life :
≥6000
Dimensions (H*W*D) :
630*1580*175mm
Warranty :
10 Years

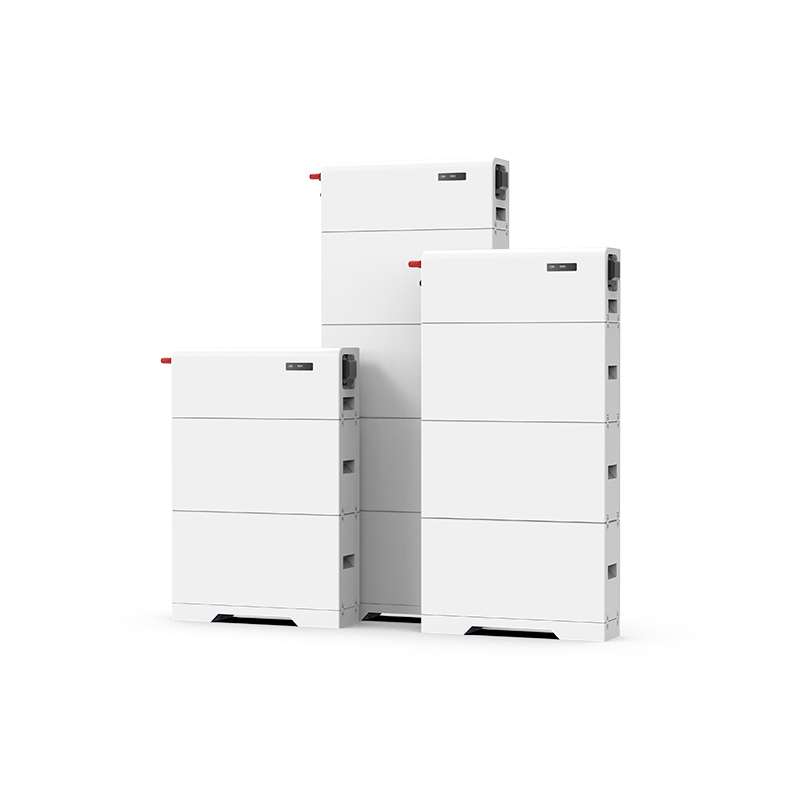

HUANIU 15kWh HV Stacked Energy Storage System
Powerful, reliable, and backed by a decade of guaranteed performance, the HUANIU LiFePO4 Battery is the ultimate energy storage solution for your home or business.
With its cutting-edge technology and environmentally-friendly design, the LiFePO4 Battery empowers you to take control of your energy usage like never before. Whether you want to harness solar power, store electricity during off-peak hours, or secure a reliable backup power source, the HUANIU LiFePO4 Battery has got you covered.
Key Features
Expand with Ease

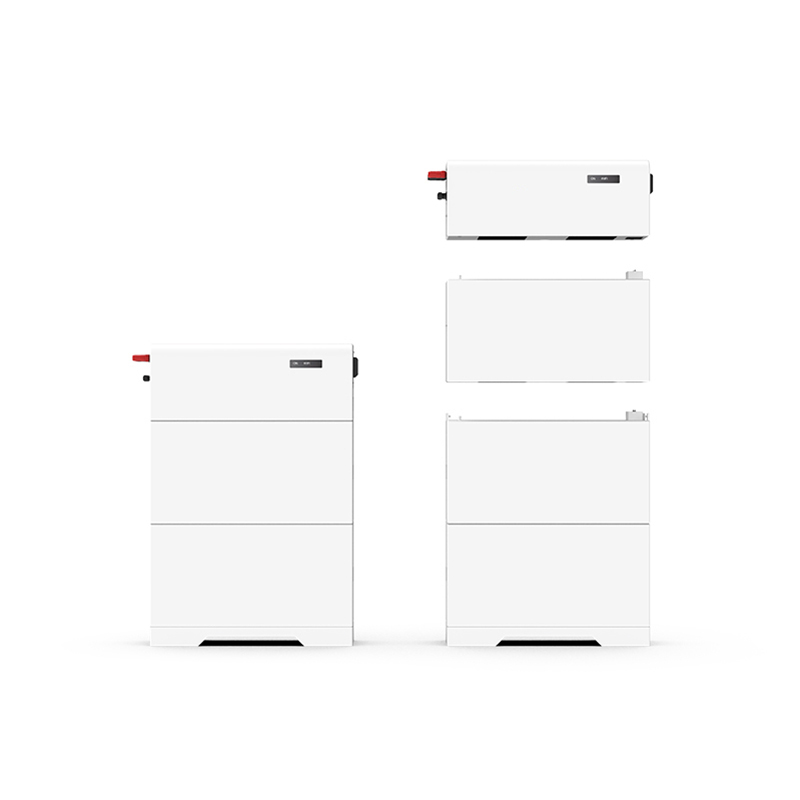

Stackable 5kWh modules make capacity adjustments effortless. Expand your system as needed without hassle.
Durable Performance
With ≥6000 cycles, it delivers consistent power day after day, year after year.
Stylish Integration
Seamlessly blends into modern spaces, enhancing both function and aesthetics.
Longevity & Support
Enjoy peace of mind with a 10-year warranty and 24/7 technical assistance.
High Voltage
High voltage BMS allows for higher increased efficiency in charge and discharging.
| YRBHSS-10-E1 | YRBHSS-15-E1 | YRBHSS-20-E1 | ||
| Control Module | Mode | YC-R-HC-500V25A-A | ||
| Quantity | 1 | 1 | 1 | |
| Battery Pack | Mode | YC-R-HC-102V50A-A | ||
| Quantity | 2 | 3 | 4 | |
| Base | Mode | YC-R-HC-25A-A | ||
| Quantity | 1 | 1 | 1 | |
| Battery Type | LiFePO4 | |||
| Nominal Voltage | 204.8V | 307.2V | 409.6V | |
| Rated Capacity | 50Ah | 50Ah | 50Ah | |
| Capacity | 10.2kWh | 15.3kWh | 20.4kWh | |
| Rated Charging / Discharging Current | 25A / 25A | |||
| Max. Discharge Continuous Current | 25A | |||
| Battery Max. Charge / Discharge Power | 25A | |||
| Peak Discharge Current / Power | 25A | |||
| Available SOC Range | 0~100% | |||
| Dimension | 630*940*175mm | 630*1260*175mm | 630*1580*175mm | |
| Weight | 120kg | 170kg | 220kg | |
| Operating Temperature | Charging Temperature: 0-50℃ / 32°F~ 122 °F Discharge Temperature: -20-60℃ / -4°F~ 140 °F | |||
| Storage Temperature | -10°C~50°C / 14°F~ 122 °F | |||
| Working Humidity | 0~100% | |||
| Cycle Life( 0.5C discharge, 80%DOD ) | >6000 | |||
| Warranty | 10 Years | |||
| IP Rating | IP65 | |||
| Certification | IEC62619 / UL1973 / UL9540A / CE-EMC / UN38.3 / FCC | |||

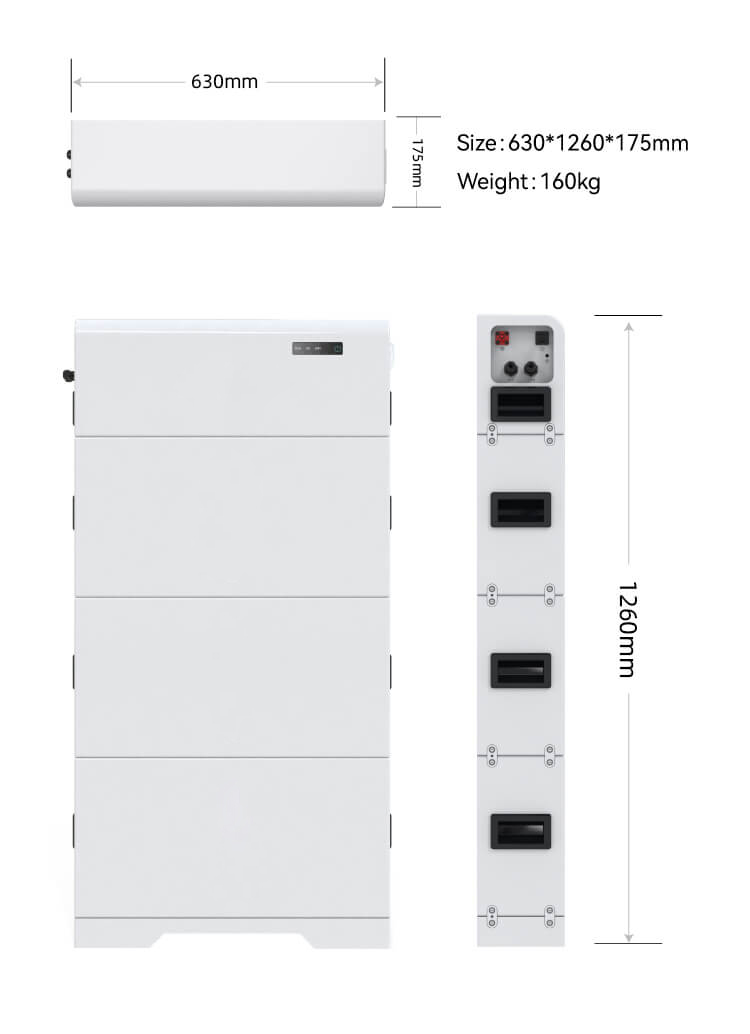

Product Size
Wide Compatibility
Compatible with mainstream brand inverters: Growatt, Deye, Victron, Aiswei, Afore, SRNE, MEGAREVO…
