● Customized power system solutions.
● Improved reliability and security.
● Cluster-level intelligent management.
Capacity:
100KW/215kWh
Dimensions (H*W*D):
Approx.1200*1200*2150mm
IP Rating :
LiFePO4
Weight:
IP54
Battery Type :
Approx.2000kg

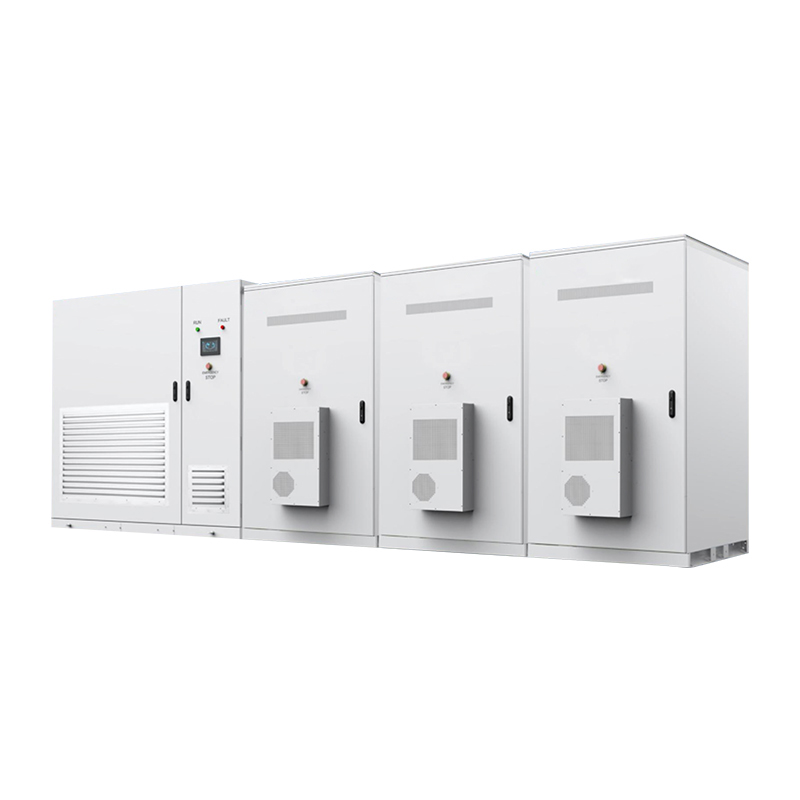

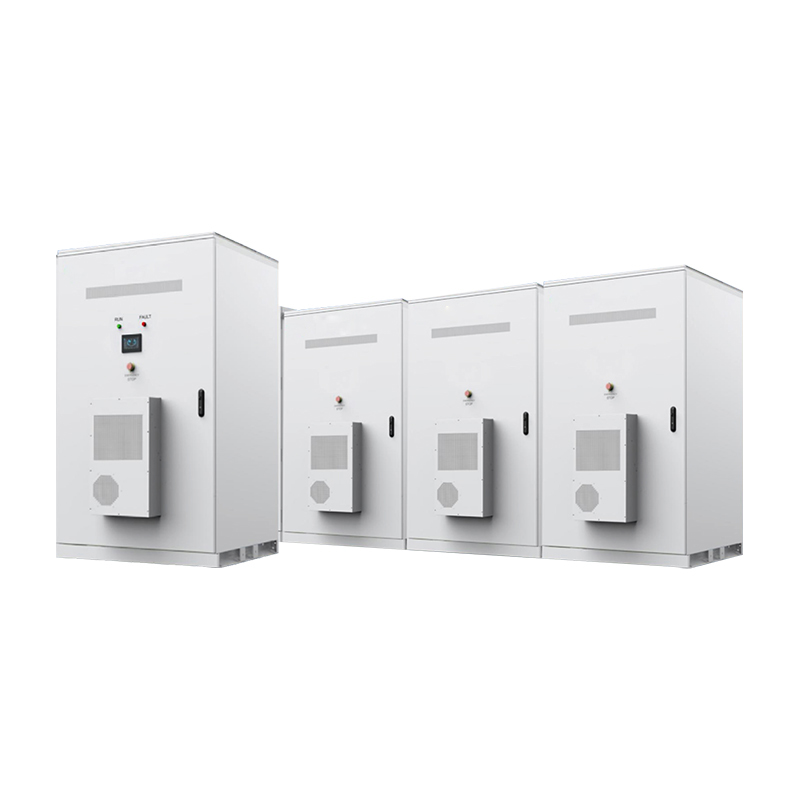

HUANIU Energy Storage Systems (ESS)
HUANIU provides an one-stop solution for industrial and commercial complexes to adjust peaks and frequencies in a timely manner according to the load of the grid, cutting peaks and filling valleys to save electricity bills, reduce the risk of energy price increases, generate additional revenue from renewable energy and reduce the impact on the environment.
Applications in Industry and Commerce
Peak Shaving:
BESS can reduce energy costs by storing electricity during low-demand periods and releasing it during peak demand, thus avoiding higher energy prices.
Emergency Backup:
In case of power outages, BESS provides a reliable power backup, ensuring continuous operations in commercial and industrial facilities.
Renewable Integration:
As industries move towards greener solutions, BESS plays a critical role in storing intermittent renewable energy like solar and wind, making it available when needed.
Grid Stabilization:
BESS helps stabilize the grid by balancing supply and demand, preventing power fluctuations that can harm sensitive industrial equipment.
| Category | Projects | 100kW / 215kWh Systems | 250kW/645kWh Systems | 500kW / 1075kWh Systems |
| Configuration | Rated power | 100kw | 250kw | 500kw |
| Battery type | LFP | |||
| RACK configuration (xPxS) | 1P1S | 3P1S | 5P1S | |
| Rated battery energy (kWh) | 215 | 645 | 1075 | |
| Rated capacity (Ah) | 280 | 840 | 1400 | |
| Charge and discharge parameters | d battery voltage (V) | 768 | ||
| Maximum charge voltage (V) | 856 | |||
| Discharge cut-off voltage (V) | 672 | |||
| Rated discharge power (kW) | 100 | 250 | 500 | |
| Standard charging current (A) | 140 | 300 | 600 | |
| Standard discharge current (A) | 140 | 300 | 600 | |
| Max. discharge current (A) | 280 | 362 | 724 | |
| Discharge depth | 90% | 80% | 80% | |
| Efficiency | System efficiency | >85% | ||
| Basic parameters | Ambient temperature (℃) | -10~45℃ | ||
| Relative Humidity | 5%~95% None Condensation | |||
| Protection class | IP54 | |||
| Cooling method | Individually temperature-controlled interior air conditioning | |||
| Fire protection system | Fire suppression tubes | |||
| Communication method | Net | |||

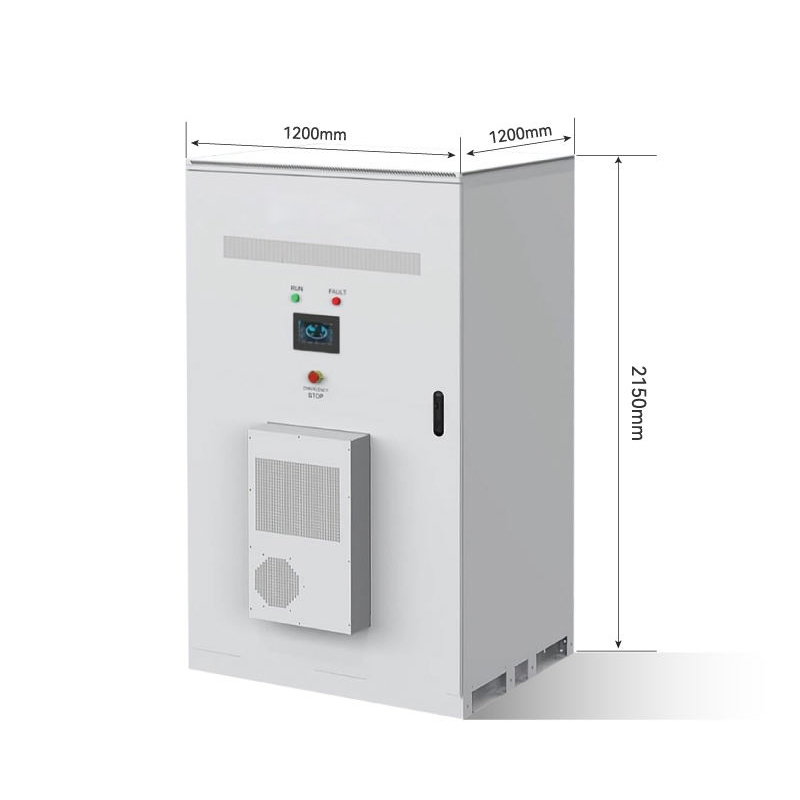

Product Size
