● Environmentally friendly & self-safe LiFePO4 battery.
● Cluster-level intelligent management.
● Reduction of peak loads
● Use of variable electricity tariffs
● High power density saves floor space
● Built-in fire protection system,safe and secure.
● Modular design supports parallel connection and easy system scalability.
● An optional isolation transformer is available for off-grid applications
Capacity:
100KW/215kWh
Dimensions (H*W*D):
Approx.1200*1200*2150mm
IP Rating:
IP54
Weight:
Approx.2000kg
Battery Type :
LiFePO4

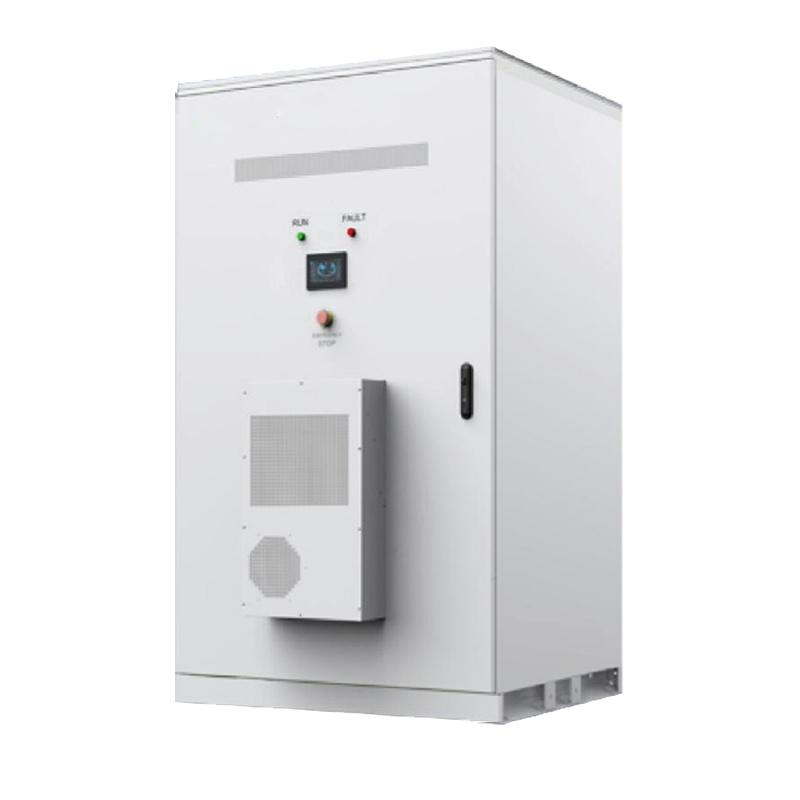

HUANIU 100kWh 200kWh 300kWh C&I Battery Energy Storage System
HUANIU provides an one-stop solution for industrial and commercial complexes to adjust peaks and frequencies in a timely manner according to the load of the grid, cutting peaks and filling valleys to save electricity bills, reduce the risk of energy price increases, generate additional revenue from renewable energy and reduce the impact on the environment.
Applications in Industry and Commerce
Cost Savings
Commercial energy storage systems can reduce electricity expenses by storing energy during low-demand, low-cost periods and using it during peak-demand, high-cost periods.
Energy Management
They allow better management of power supply, balancing energy demand, reducing waste, and lowering energy costs.
Backup Power
Commercial energy storage can serve as backup power sources to maintain critical operations during power outages or emergencies.
Improved Energy Independence
Commercial energy storage systems increase energy independence, reducing reliance on the grid and minimizing the risk of power supply interruptions.
Integration of Renewable Energy
They enable the integration of renewable energy sources like solar or wind power, storing excess energy for backup or selling it back to the grid.
| Category | Projects | 100kW / 215kWh Systems | 250kW/645kWh Systems | 500kW / 1075kWh Systems |
| Configuration | Rated power | 100kw | 250kw | 500kw |
| Battery type | LFP | |||
| RACK configuration (xPxS) | 1P1S | 3P1S | 5P1S | |
| Rated battery energy (kWh) | 215 | 645 | 1075 | |
| Rated capacity (Ah) | 280 | 840 | 1400 | |
| Charge and discharge parameters | d battery voltage (V) | 768 | ||
| Maximum charge voltage (V) | 856 | |||
| Discharge cut-off voltage (V) | 672 | |||
| Rated discharge power (kW) | 100 | 250 | 500 | |
| Standard charging current (A) | 140 | 300 | 600 | |
| Standard discharge current (A) | 140 | 300 | 600 | |
| Max. discharge current (A) | 280 | 362 | 724 | |
| Discharge depth | 90% | 80% | 80% | |
| Efficiency | System efficiency | >85% | ||
| Basic parameters | Ambient temperature (℃) | -10~45℃ | ||
| Relative Humidity | 5%~95% None Condensation | |||
| Protection class | IP54 | |||
| Cooling method | Individually temperature-controlled interior air conditioning | |||
| Fire protection system | Fire suppression tubes | |||
| Communication method | Net | |||

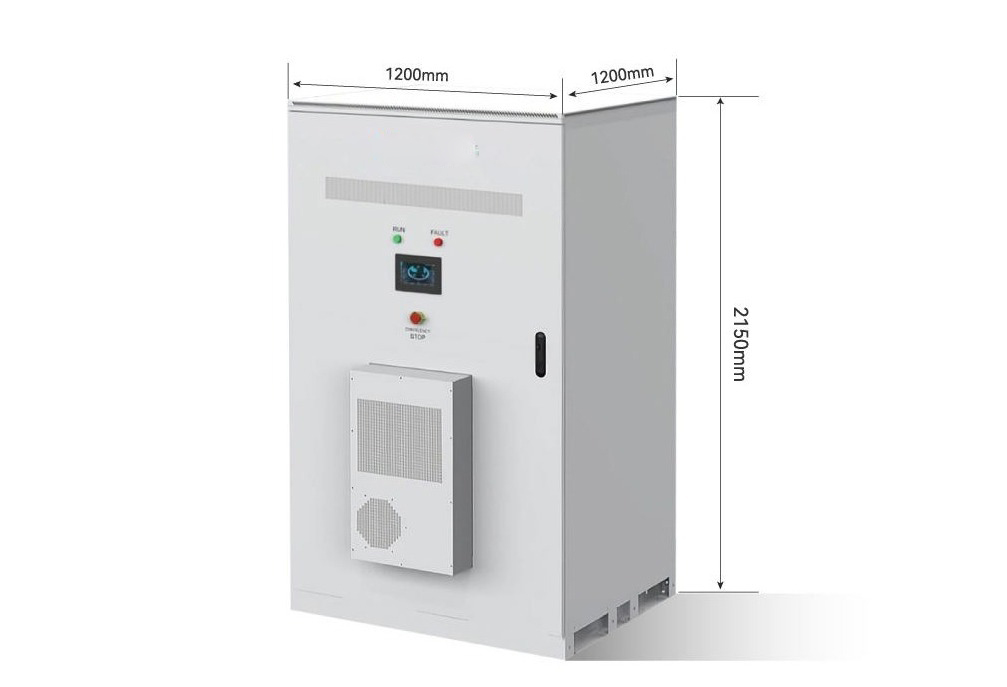

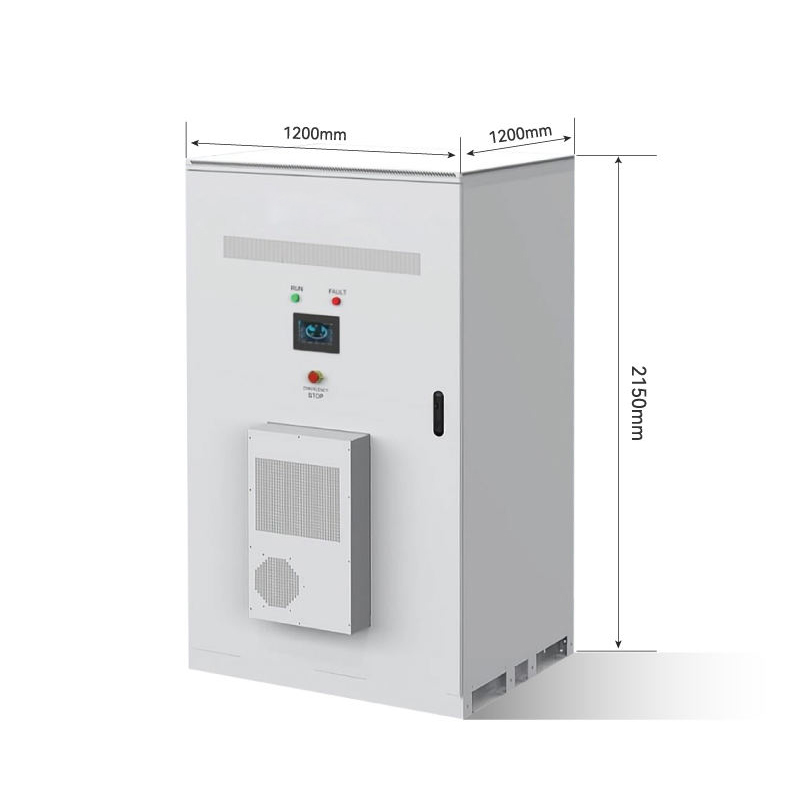

Product Size

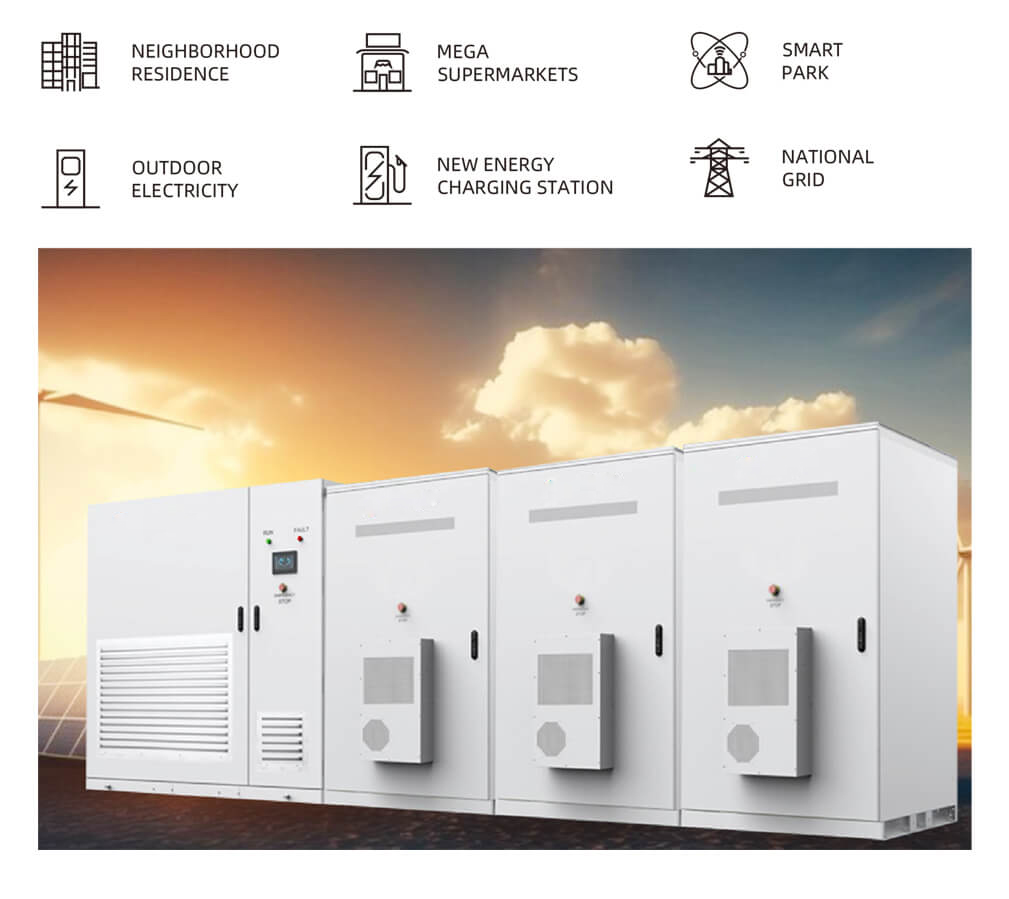

Product Applications
