All-in-one battery

5kW 10kWh All-In-One Stackable Battery Energy Storage System

  • Long lifespan: Up to 6000 cycles.

  • Utilizes A+ grade high-quality LiFePO4 lithium batteries, known for their safety and reliability.

  • Stack up to 15 units in parallel, achieving 76.8 kWh capacity.

  • Ultra-safe built-in Battery Management System (BMS) enhances protection.

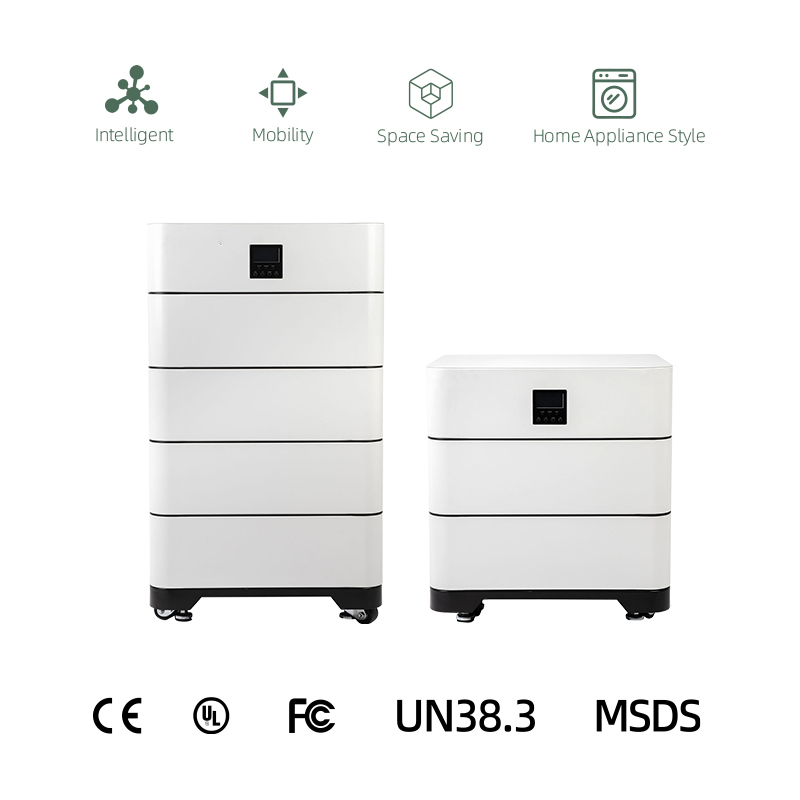

  • Certified by CE, UL, FCC, UN38.3, and MSDS.

  • Capacity :

    5kW+10kWh

  • Nominal Voltage :

    51.2V

  • Rated Capacity:

    100Ah

  • Cycle Life:

    >6000

  • Dimensions (H*W*D) :

    550*500*631mm

  • Warranty :

    5 Years

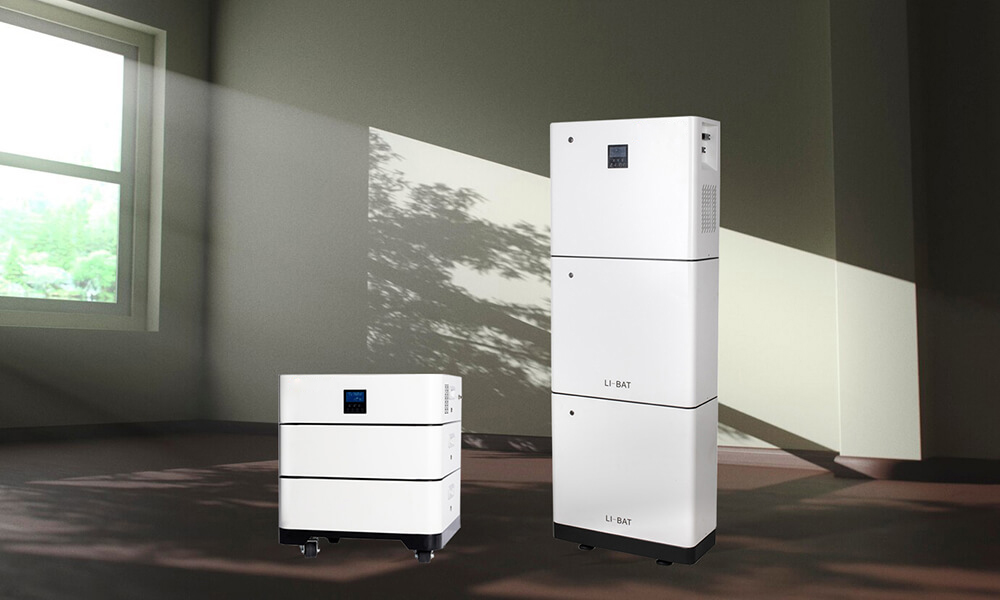

HUANIU All-In-One Stackable Battery Energy Storage System (BESS)

The HUANIU All-In-One Stackable Battery System exemplifies the forefront of energy storage solutions, merging key components into a single, streamlined unit. Whether you're looking to optimize energy usage in a residential setting or need a reliable solution for commercial applications, our system offers unparalleled efficiency, safety, and scalability to meet your demands.



Key Features



Long Life:

Equipped with A+ grade high-quality LiFePO4 lithium batteries, the HUANIU BESS guarantees a long operational life, exceeding 6000 cycles. This durability ensures sustained performance and reliability over the years.

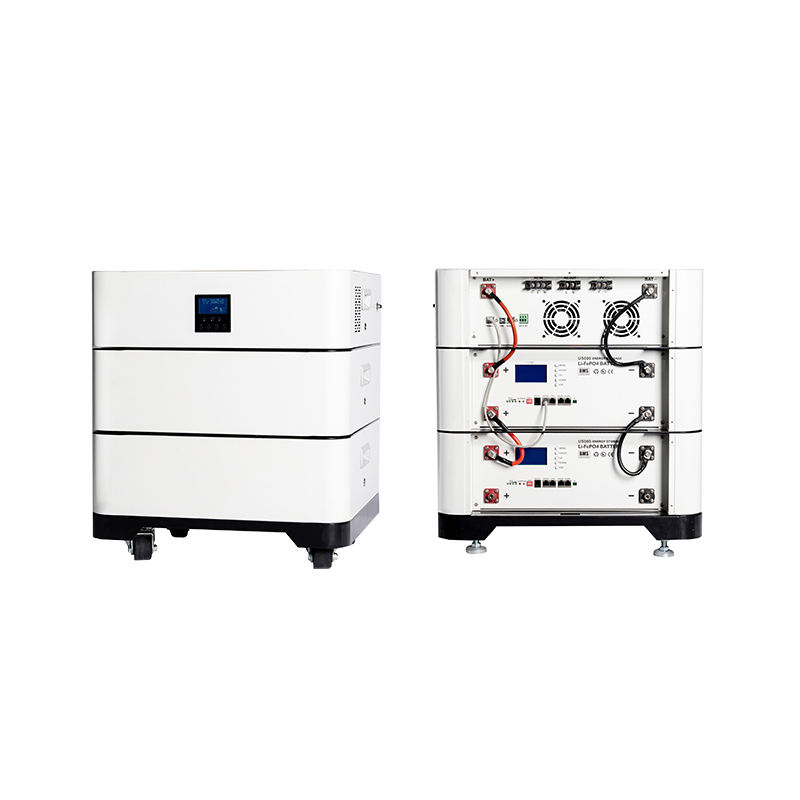

Ease and Speed of Installation:

The integrated design simplifies installation and connection processes, significantly reducing the time and cost associated with setup. This makes our BESS an ideal choice for both new installations and upgrades.

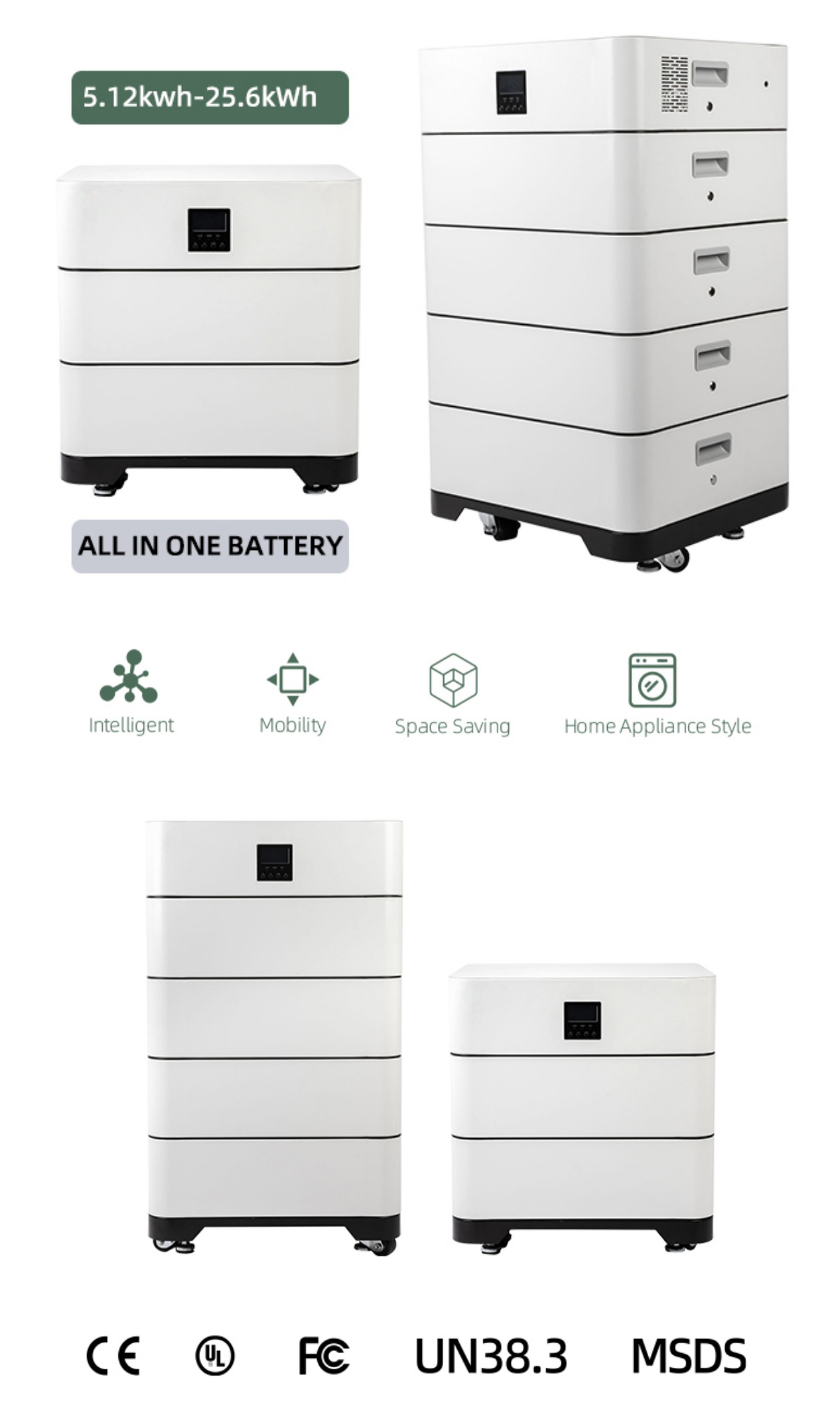

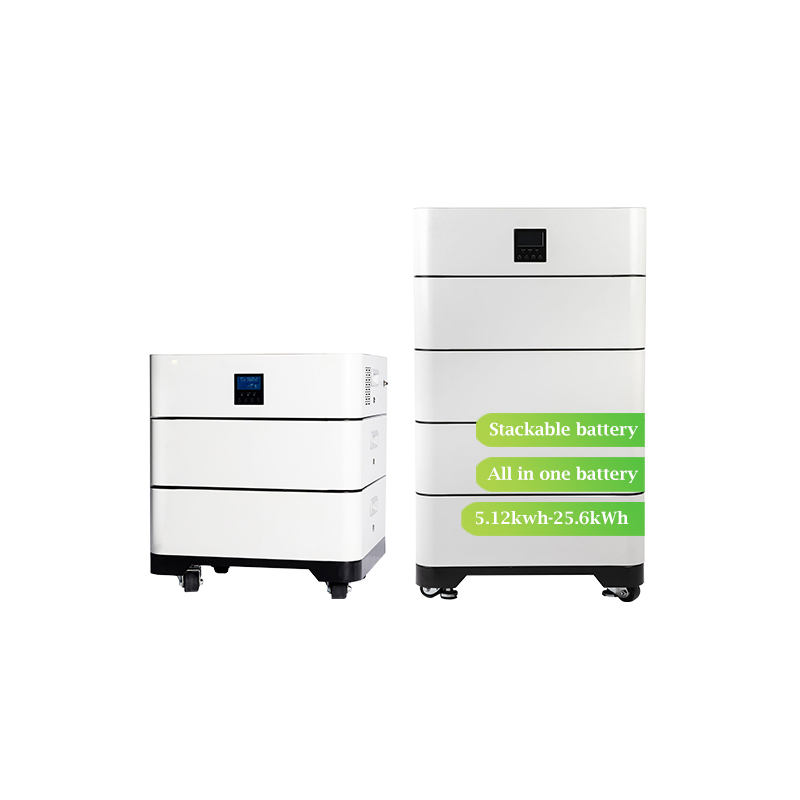

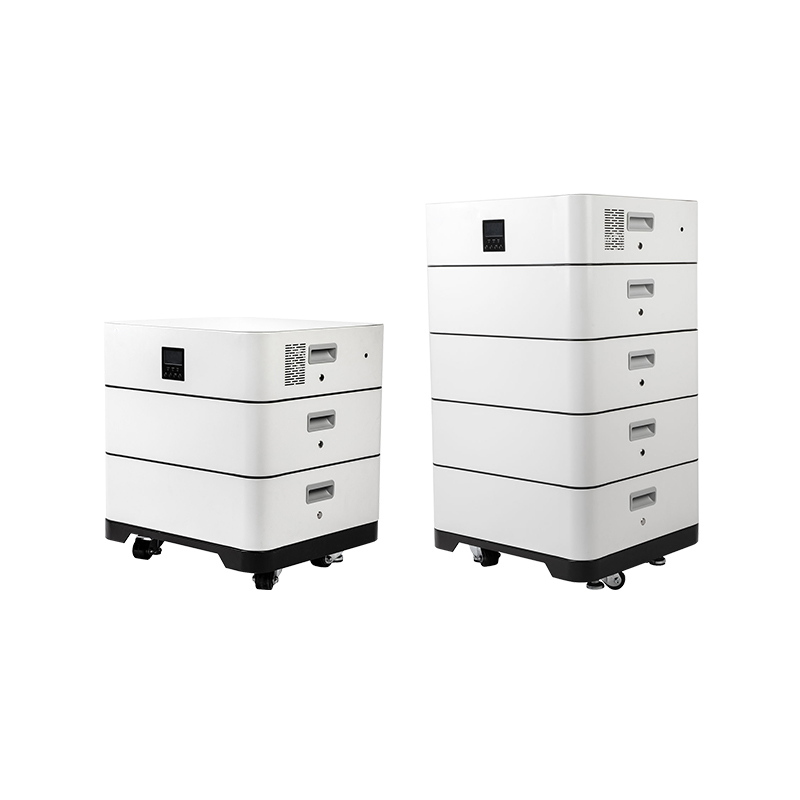

Modular Stack Design:

The innovative modular stack design allows for maximum flexibility. Up to 15 units can be stacked in parallel, expanding the system to an impressive 76.8 kWh capacity. This scalability makes it easy to adapt to growing energy needs without compromising on space or safety.

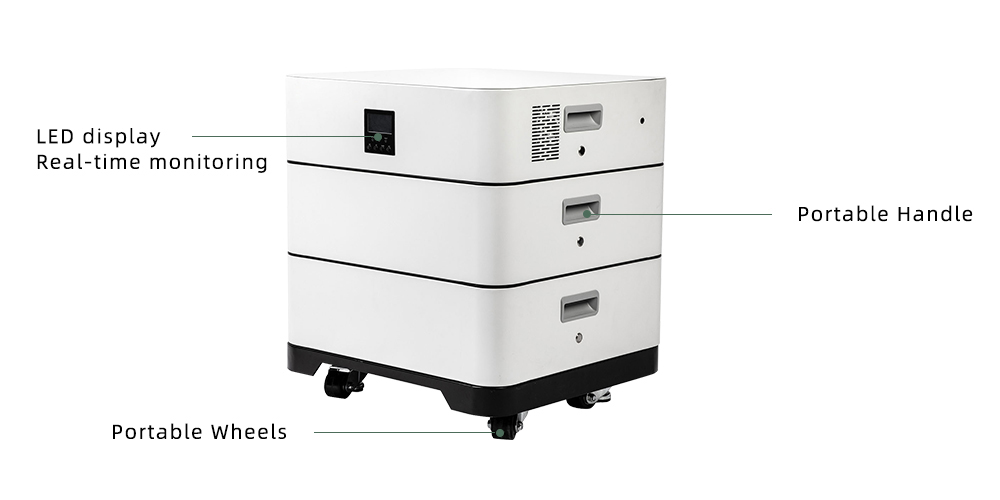

Stable Design:

Engineered for stability, our BESS features a load-bearing design that ensures secure and stable placement, preventing any disruptions or hazards.





PARAMETERS


Datasheet5kW+5.12kWh5kW+10.24kWh5kW+15.36kWh5kW+20.48kWh5kW+25.6kWh10kW+10.24kWh10kW+15.36kWh10kW+20.48kWh10kW+25.6kWh
Single Module5.12kWh
Module Number1PCS2PCS3PCS4PCS5PCS2PCS3PCS4PCS5PCS
Capacity5.12kWh10.24kWh15.36kWh20.48kWh25.6kWh10.24kWh15.36kWh20.48kWh25.6kWh
Nominal Voltage51.2V
Operating Voltage Range43.2V~57.6V
Rated Discharge Current100A
Rated Charge Current50A
Cycle Life(90% DOD)>6000
Installation MethodStacked
Weight(Module)43kg
Voltage500VDC
Working Voltage Range120~450VDC90~450VDC
Input Power5500WPV1:5400W/PV2:5400W
Max Input Current22APV1:18A/PV2:18A
Max Charging Current30A50A
Rated Input Voltage220/230VAC
Rated Input Voltage RangeUPS:(170~280)VAC ±2%, APL:(90~280)VAC ±2%170~280VAC
Frequency50Hz/60Hz
Max Bypass Overload Current30A50A
Rated Output Voltage230VAC
Rated Output Power5000W10200W/3400W (Battery Mode)
Dimenstion550*500*446mm550*500*631mm550*500*816mm550*500*1001mm550*500*1186mm550*500*631mm550*500*816mm550*500*1001mm550*500*1186mm
IP RatingIP20

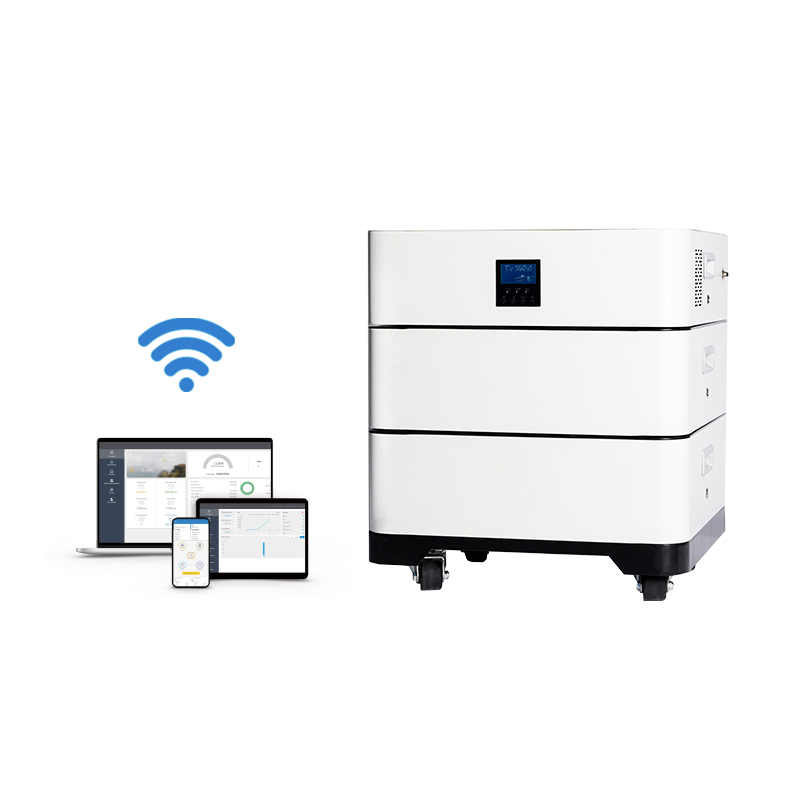

CommunicationCAN/RS485/RS232/WIFI (Optional )
Operating Temperature0~55 ℃
Storage Temperature-20~55℃
Humidity≤80%
CertificationCE/UL/FCC/UN38.3/MSDS
