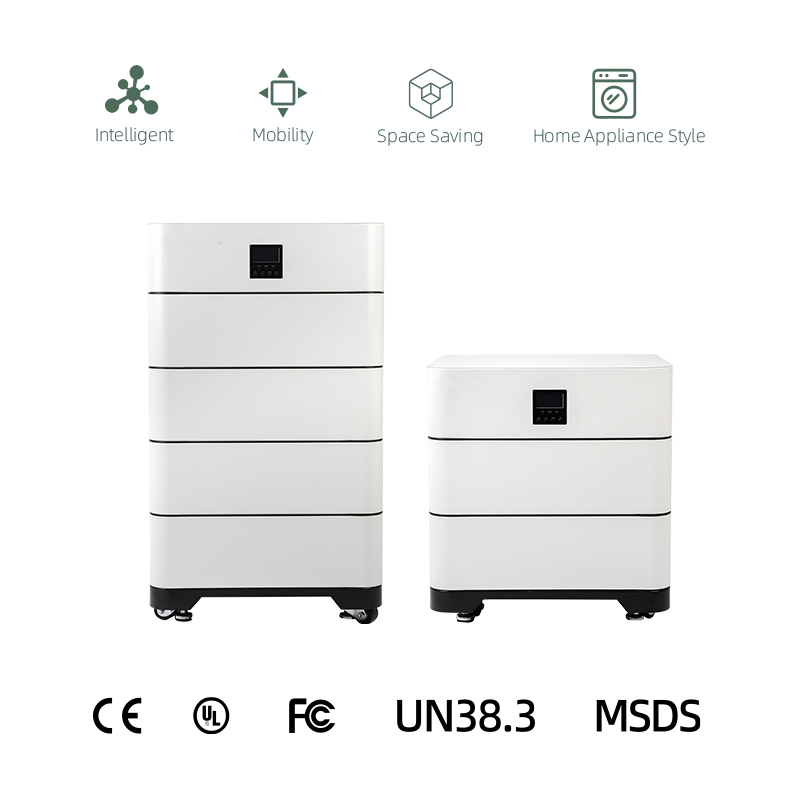

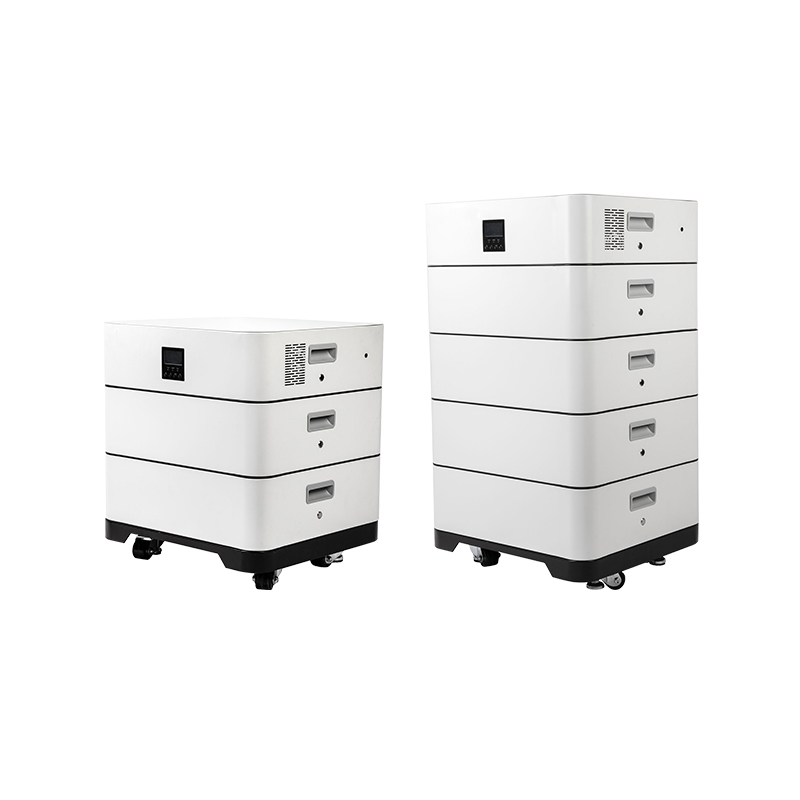

51.2V 100A 20.48kWh All In One Energy Storage System With 5kw Inverter

Up to 6,000 cycles for extended lifespan.
Uses A+ grade LiFePO4 lithium batteries for superior safety and reliability.

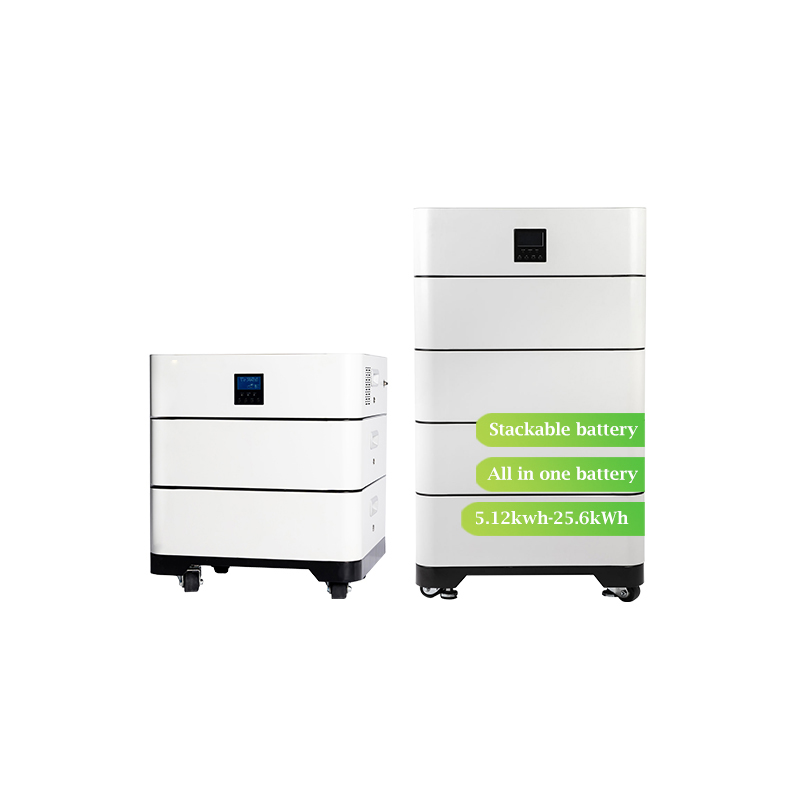

Stackable up to 15 units, reaching a total of 76.8 kWh.
Built-in ultra-safe Battery Management System (BMS) for added protection.
Meets CE, UL, FCC, UN38.3, and MSDS standards.

Capacity:
5kW+20.48kWh
Nominal Voltage :
51.2V
Rated Capacity :
100Ah
Cycle Life :
＞6000
Dimensions (H*W*D) :
550*500*1001mm
Warranty :
5 Years

INQUIRE NOW

Product Details

51.2V 100A 20.48kWh All In One Energy Storage System With 5kw Inverter

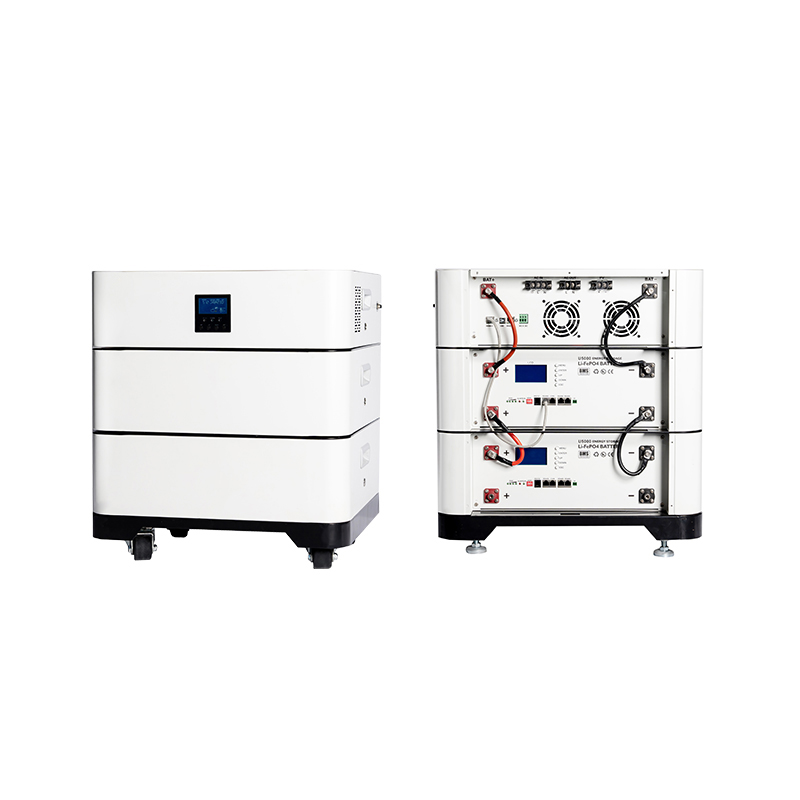

The HUANIU All-in-One Energy Storage Battery is a powerful and reliable solution designed to meet the energy needs of both homes and businesses. This advanced system features a 51.2V, 200Ah, 20.48kWh LiFePO4 battery, comprising four 5.12kWh battery modules connected in parallel. Engineered with precision, this unit seamlessly integrates a 5kW off-grid inverter, making it a truly plug-and-play energy storage solution.

Our energy storage battery maximizes the use of natural energy, capturing and storing power from solar sources during the day and efficiently delivering it when needed, especially at night. The system ensures a continuous and sustainable energy supply, providing an eco-friendly alternative to traditional energy sources.

Designed for versatility, this robust energy storage solution is ideal for a wide range of applications. Whether you’re looking to power a residential property or support the energy demands of a commercial establishment, the HUANIU All-in-One Energy Storage Battery offers dependable performance and peace of mind.

Key Features

High Capacity:

20.48kWh storage capacity with a 5kW off-grid inverter for reliable energy supply.

Efficient Design:

Plug-and-play system for easy installation and operation.

Sustainable Energy:

Harnesses solar energy, storing power during the day and providing it at night.

Versatile Applications:

Suitable for homes, businesses, and various off-grid energy needs.

Durable and Reliable:

Built with advanced LiFePO4 technology for long-lasting performance and safety.

PARAMETERS

Datasheet	5kW+5.12kWh	5kW+10.24kWh	5kW+15.36kWh	5kW+20.48kWh	5kW+25.6kWh	10kW+10.24kWh	10kW+15.36kWh	10kW+20.48kWh	10kW+25.6kWh
Single Module	5.12kWh
Module Number	1PCS	2PCS	3PCS	4PCS	5PCS	2PCS	3PCS	4PCS	5PCS
Capacity	5.12kWh	10.24kWh	15.36kWh	20.48kWh	25.6kWh	10.24kWh	15.36kWh	20.48kWh	25.6kWh
Nominal Voltage	51.2V
Operating Voltage Range	43.2V~57.6V
Rated Discharge Current	100A
Rated Charge Current	50A
Cycle Life(90% DOD)	>6000
Installation Method	Stacked
Weight(Module)	43kg
Voltage	500VDC
Working Voltage Range	120~450VDC					90~450VDC
Input Power	5500W					PV1:5400W/PV2:5400W
Max Input Current	22A					PV1:18A/PV2:18A
Max Charging Current	30A					50A
Rated Input Voltage	220/230VAC
Rated Input Voltage Range	UPS:(170~280)VAC ±2%， APL:(90~280)VAC ±2%					170~280VAC
Frequency	50Hz/60Hz
Max Bypass Overload Current	30A					50A
Rated Output Voltage	230VAC
Rated Output Power	5000W					10200W/3400W (Battery Mode）
Dimenstion	550500446mm	550500631mm	550500816mm	5505001001mm	5505001186mm	550500631mm	550500816mm	5505001001mm	5505001186mm
IP Rating	IP20

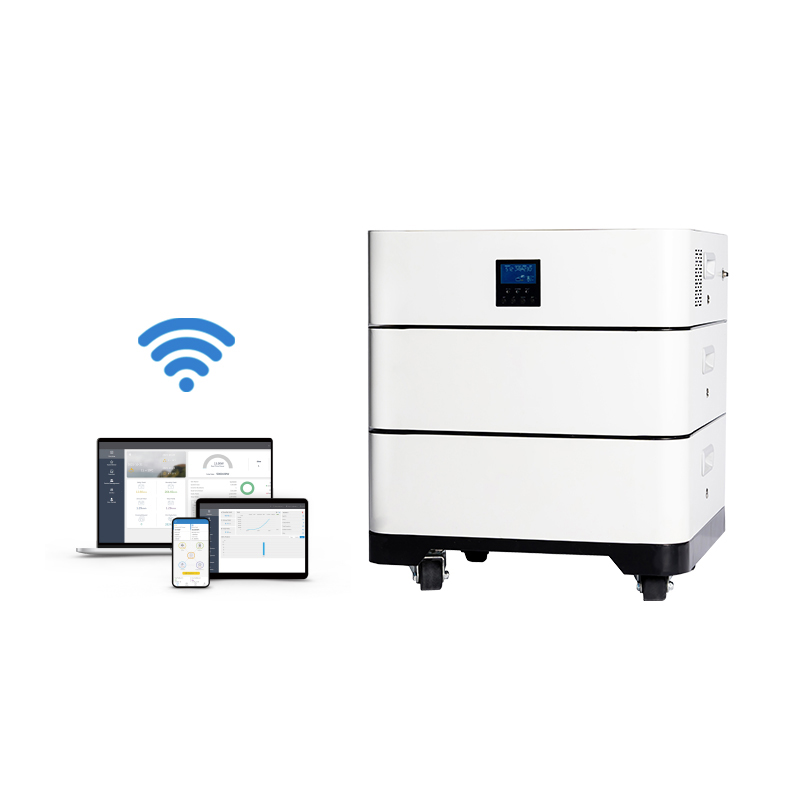

Communication	CAN/RS485/RS232/WIFI (Optional )
Operating Temperature	0~55 ℃
Storage Temperature	-20~55℃
Humidity	≤80%
Certification	CE/UL/FCC/UN38.3/MSDS
