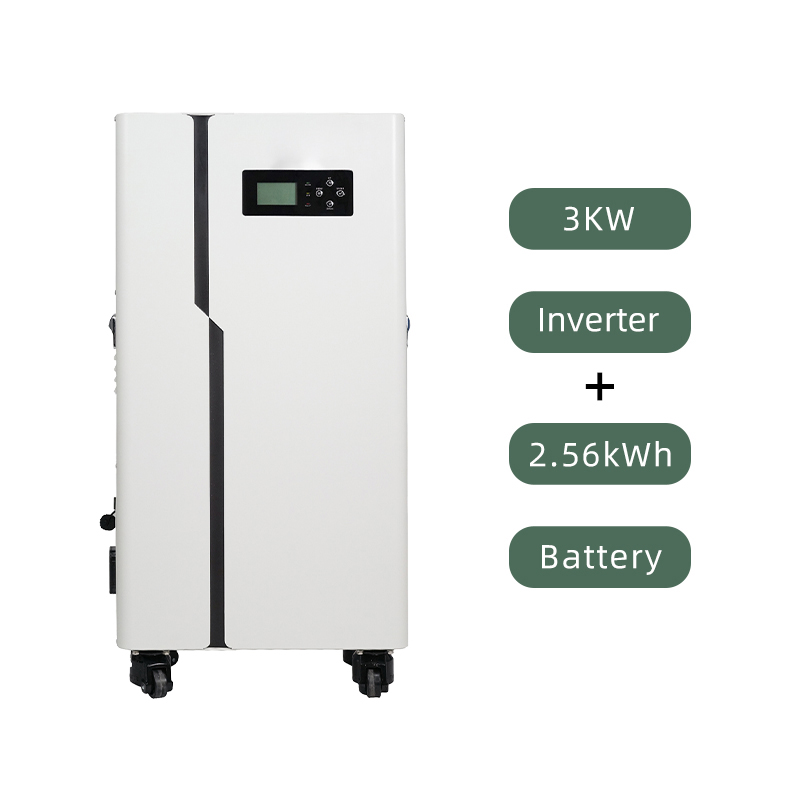

3kW 2.56kWh All In One Battery With Off-Grid Solar Inverter

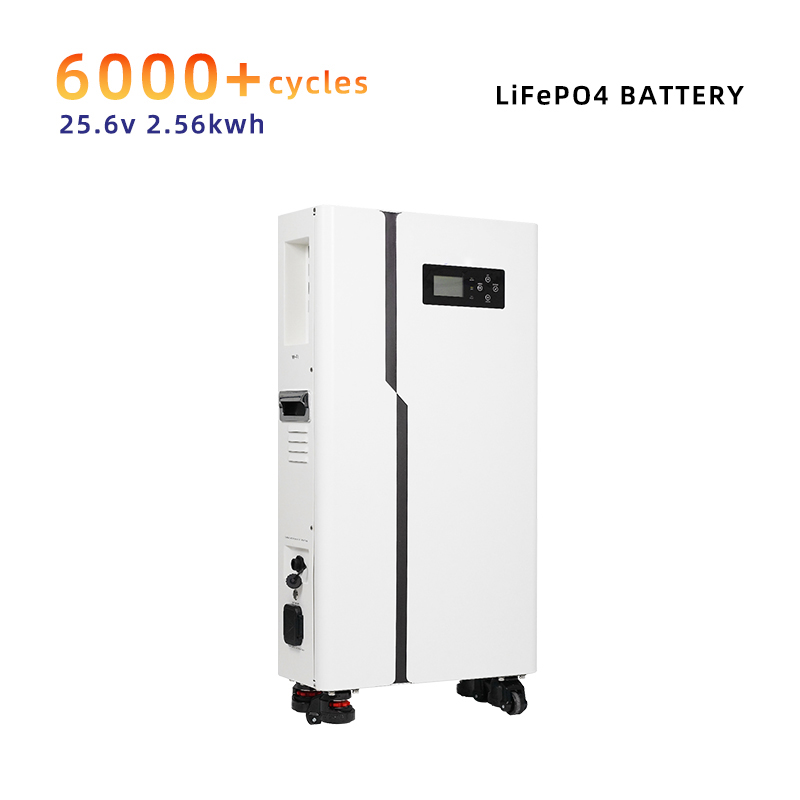

Features an A+ grade high-quality LiFePO4 lithium battery.
Delivers a long lifespan with over 6000 cycles.
Includes an ultra-safe built-in Battery Management System (BMS) for enhanced protection.

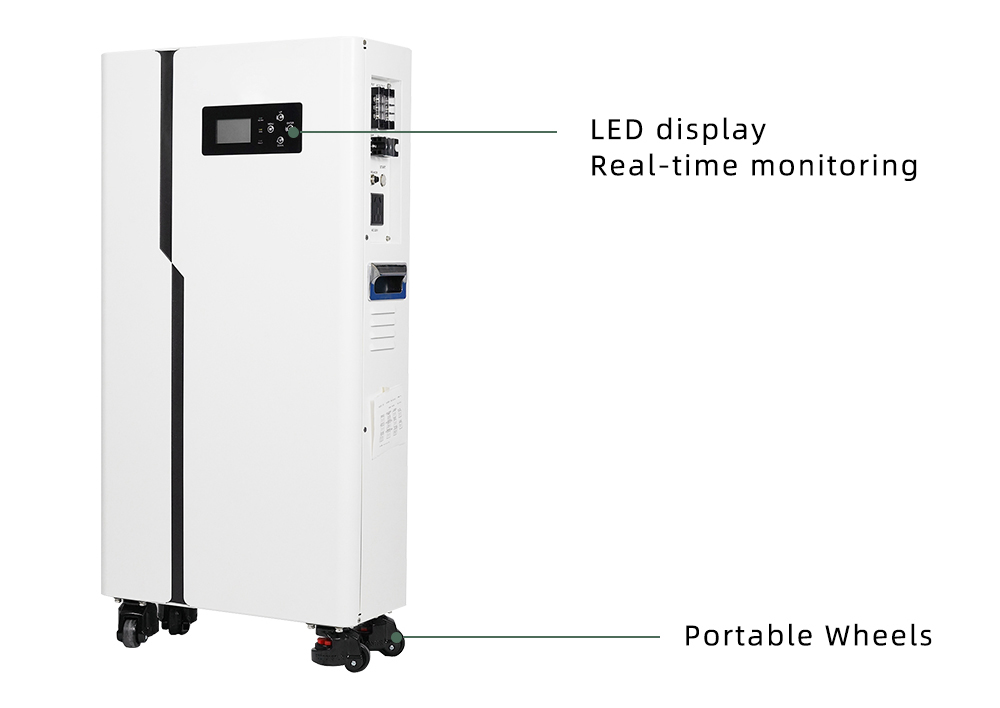

Designed with a portable handle and pulley for easy movement and assembly.

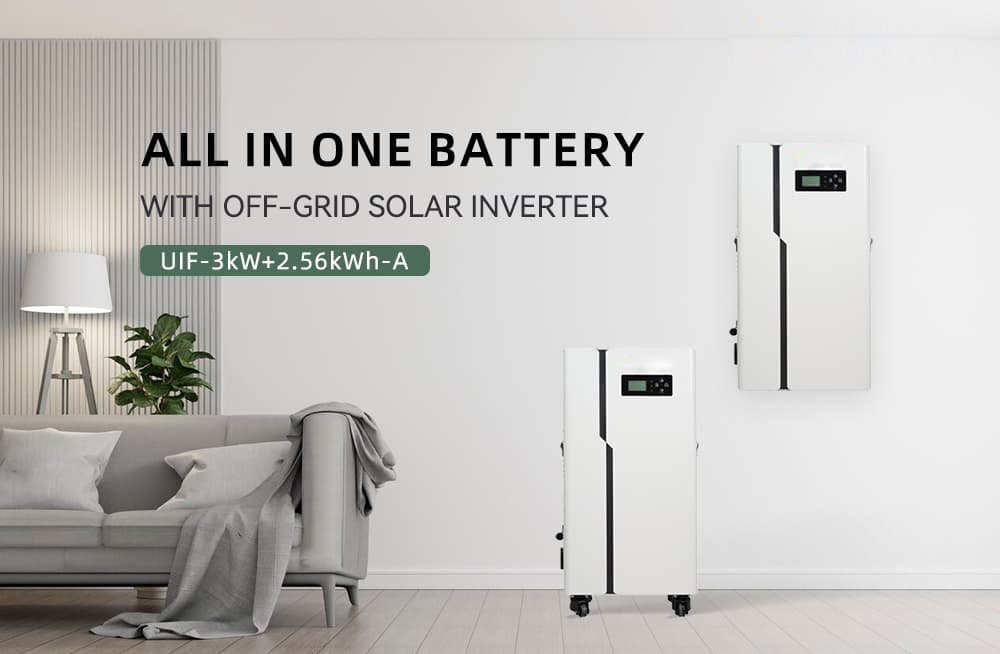

Can be floor-standing or wall-mounted, ensuring convenient and easy installation.

Capacity :
3kW 2.56kWh
Nominal Voltage :
25.6V
Rated Capacity :
100Ah
Cycle Life :
＞6000

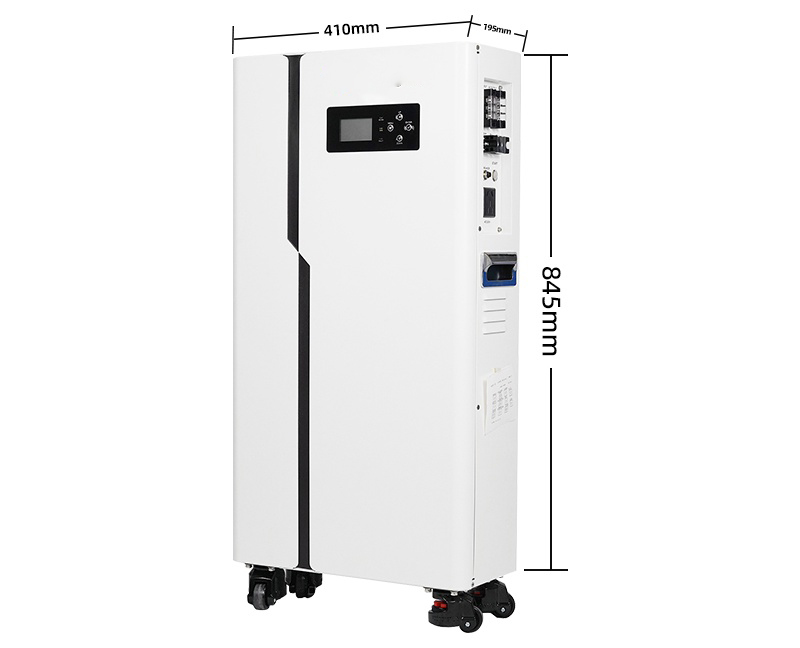

Dimensions (H*W*D):
410*845*195mm
Warranty :
5 Years

INQUIRE NOW

Product Details

HUANIU 3kW 2.56kWh All In One Battery With Off-Grid Solar Inverter

By offering a comprehensive, efficient, and versatile energy solution, a 3kW 2.56kWh all-in-one battery with an off-grid solar inverter is an attractive option for those seeking reliable and sustainable power.

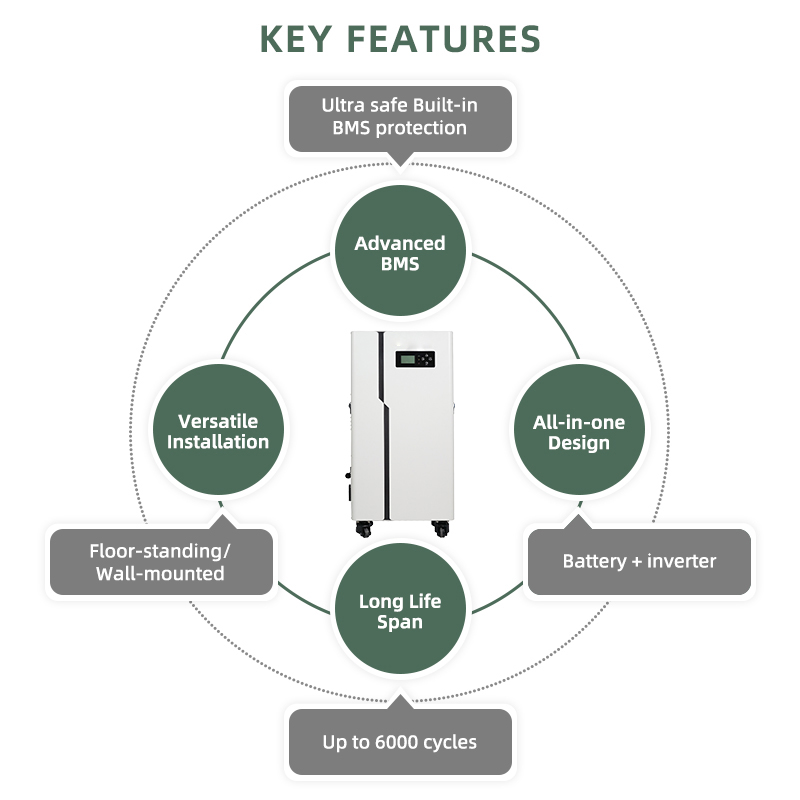

Key Features

Integrated System:

Combines a 3kW solar inverter and a 2.56kWh battery in one unit, providing a streamlined solution for solar power generation, storage, and utilization.

Energy Independence:

Enables users to operate independently of the grid, making it ideal for remote locations or areas with unreliable grid power.

Ease of Setup:

Reduces installation complexity and time by integrating all necessary components into a single unit.

Reduced Initial Investment:

Lower overall cost compared to purchasing separate inverter, battery, and other components. Potential savings on installation and labor costs due to the integrated design.

PARAMETERS

Datasheet	UIF-256100-A
Battery Type	LiFePO4
Nominal Voltage	25.6V
Rated Capacity	100Ah
Capacity	2.56kWh
Max PV OCV	160VDC
MPPT Voltage Range	30~128VDC
Max Input Power	1600W
Max Charge-Discharge Current	50A
Input/Output Voltage	220~240VAC
Optional Voltage Range	170V~280VAC(UPS)/90V~280VAC(APL)/184V~253VAC(VDE)
Input Current	14A
Output Current	17A(Term)/10A(Outlet)
Frequency	3000W
Communication	RS485/WIFI
Altitude	≤2000m
Cooling-down Method	Built In Fan
Installation Method	Wall or Floor Standing
IP Rating	IP20
Cycle Life(25℃,80% DOD)	≥6000
Operating Temperature	0~55℃
Storage Temperature	-20~55℃
Humidity	≤80%
Product Dimenstion	410845195mm
Package Dimenstion	510945315mm
Weight	45kg

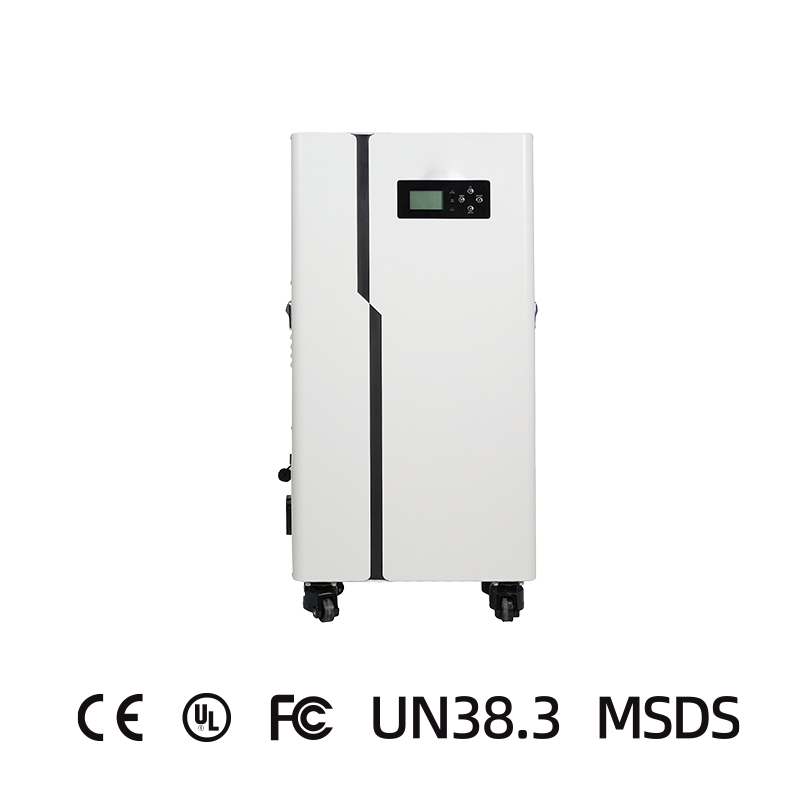

Certification	CE/UL/FCC/UN38.3/MSDS
