● Cycle life: 6000 times.
● Waterproof and Dustproof: IP65.
● Advanced BMS Control.
● Advanced lithium iron phosphate technology.
● Maximum Number Of Combinations / Total Power: ×5(25.6kWh).
● Compatible with mainstream brands of inverters.
● Certification: IEC62619 / UL1973 / UL9540A / CE-EMC / UN38.3 / FCC.
Capacity:
15.3kWh
Nominal Voltage :
307.2V
Rated Capacity :
50Ah
Cycle Life:
≥6000
Dimensions (H*W*D):
630*1260*175mm
Warranty:
10 Years

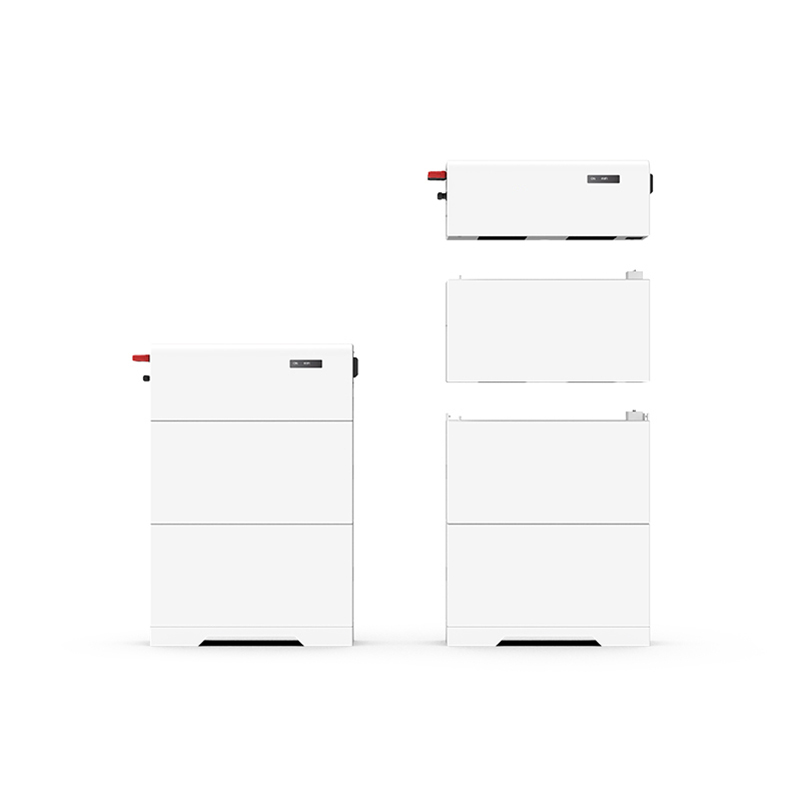

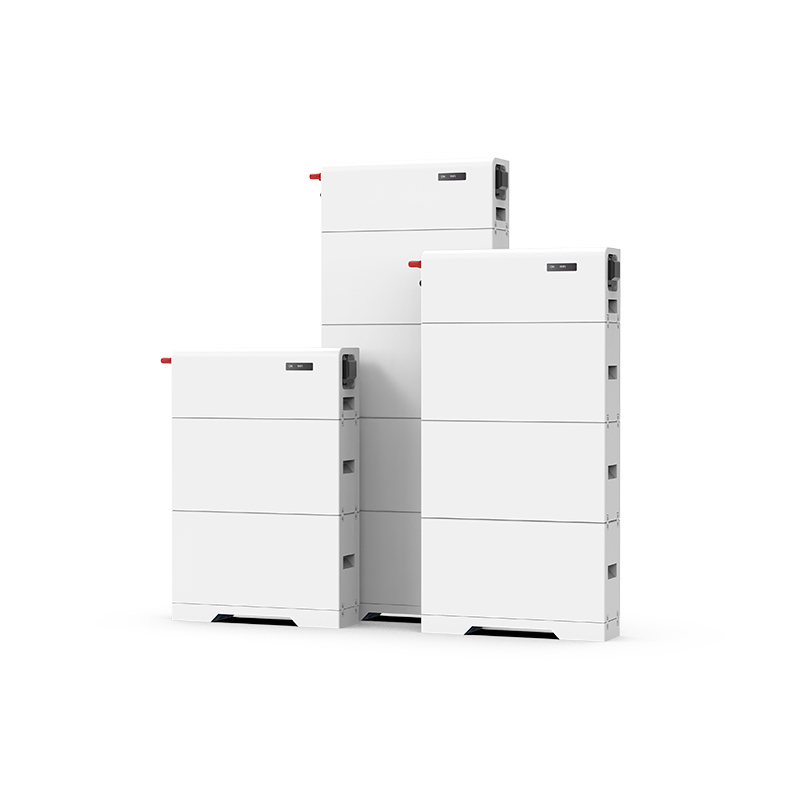

HUANIU 15kWh HV Stacked Energy Storage System
Powerful, reliable, and backed by a decade of guaranteed performance, the HUANIU LiFePO4 Battery is the ultimate energy storage solution for your home or business.
With its cutting-edge technology and environmentally-friendly design, the LiFePO4 Battery empowers you to take control of your energy usage like never before. Whether you want to harness solar power, store electricity during off-peak hours, or secure a reliable backup power source, the HUANIU LiFePO4 Battery has got you covered.
Key Features
High Safety
Adopted the most stable and safe lithium iron phosphate (LiFePO4) battery.
High Voltage System
More energy and power from higher operational efficiency.
Free Expansion
5 battery modules can be stacked, and up to 25.6kWh of power can be easily obtained.
IP65 Retad
Suitable for indoor and outdoor installation for maximum flexibility.
| YRBHSS-10-E1 | YRBHSS-15-E1 | YRBHSS-20-E1 | ||
| Control Module | Mode | YC-R-HC-500V25A-A | ||
| Quantity | 1 | 1 | 1 | |
| Battery Pack | Mode | YC-R-HC-102V50A-A | ||
| Quantity | 2 | 3 | 4 | |
| Base | Mode | YC-R-HC-25A-A | ||
| Quantity | 1 | 1 | 1 | |
| Battery Type | LiFePO4 | |||
| Nominal Voltage | 204.8V | 307.2V | 409.6V | |
| Rated Capacity | 50Ah | 50Ah | 50Ah | |
| Capacity | 10.2kWh | 15.3kWh | 20.4kWh | |
| Rated Charging / Discharging Current | 25A / 25A | |||
| Max. Discharge Continuous Current | 25A | |||
| Battery Max. Charge / Discharge Power | 25A | |||
| Peak Discharge Current / Power | 25A | |||
| Available SOC Range | 0~100% | |||
| Dimension | 630*940*175mm | 630*1260*175mm | 630*1580*175mm | |
| Weight | 120kg | 170kg | 220kg | |
| Operating Temperature | Charging Temperature: 0-50℃ / 32°F~ 122 °F Discharge Temperature: -20-60℃ / -4°F~ 140 °F | |||
| Storage Temperature | -10°C~50°C / 14°F~ 122 °F | |||
| Working Humidity | 0~100% | |||
| Cycle Life( 0.5C discharge, 80%DOD ) | >6000 | |||
| Warranty | 10 Years | |||
| IP Rating | IP65 | |||
| Certification | IEC62619 / UL1973 / UL9540A / CE-EMC / UN38.3 / FCC | |||

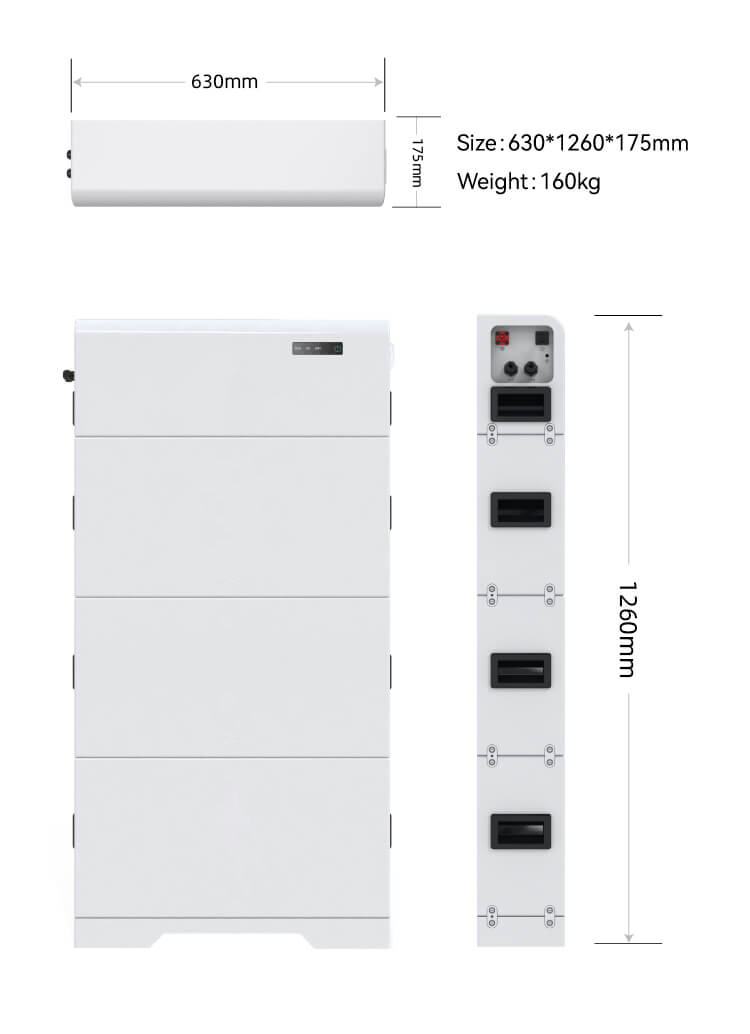

Product Size
Wide Compatibility
Compatible with mainstream brand inverters: Growatt, Deye, Victron, Aiswei, Afore, SRNE, MEGAREVO…
Production Process

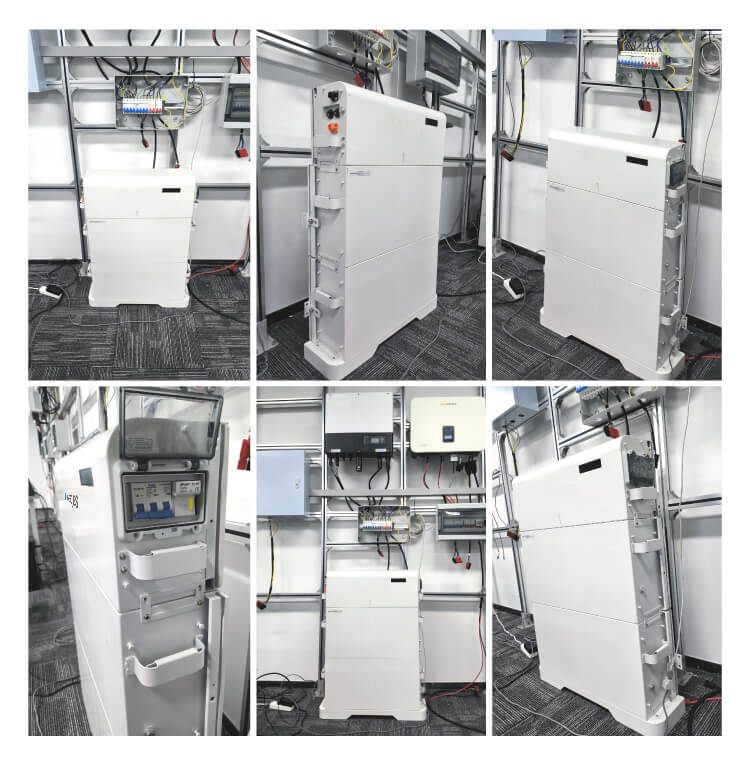

Product Cases
