● High Safety：A+ grade high-quality LiFePO4 lithium battery.
● Easy to Expand: maximum Number Of Combinations /Total Power: 16sets (81.92kWh).
● Long Life：≧ 6000 cycles.
● Built-In BMS：BMS management system protection, safety first.
● Remote access with Bluetooth / WiFi for monitoring, to reduce operation and maintenance costs.
● Certification: IEC62619 / UL1973 / UL9540A / CE-EMC / UN38.3 / FCC.
Capacity:
25.6kWh
Nominal Voltage :
51.2 V
Rated Capacity :
100Ah
Cycle Life:
≥6000
РDimensions (H*W*D):
480*460*155.5mm
Warranty :
10 Years
HUANIU 25kWh Home Stackable LiFePO4 Battery Energy Storage Batteries Manufacturer
Stacked home energy storage batteries offer scalability, allowing homeowners to start with a small system and expand it over time. They provide customization to tailor the system to specific needs, redundancy for reliability, increased storage capacity, and modular design for easier installation and maintenance. Additionally, they contribute to energy independence by storing renewable energy, offer backup power during outages, and can lead to long-term financial savings through reduced energy bills and incentives.
Key Features
Scalable Power
With a multi-parallel configuration, our battery system allows wholesalers to scale up to 16 sets, providing a maximum capacity of 81.92kWh, ensuring sufficient power for various applications.
High Performance.
Utilizing LiFePO4 cells, our battery system offers safe and reliable performance with a lifespan exceeding 6000 cycles, providing wholesalers and their customers with a durable and cost-effective energy storage solution.
Intelligent Monitoring
Our battery system features an intelligent monitor system, enabling wholesalers to efficiently track and manage energy usage, ensuring optimal performance and maximizing return on investment.
Comprehensive Certification
HUANIU' battery system is certified to meet international standards including IEC62619, UL1973, UL9540A, CE-EMC, UN38.3, and FCC, providing wholesalers with peace of mind regarding safety, quality, and compliance.
| Type | B51100 | |
| Battery Type | LiFePO4 | |
| Nominal Voltage | 51.2 V | |
| Rated Capacity | 100 Ah | |
| Capacity | 5.12kWh | |
| Rated Charging / Discharging Current | 100A/100A | |
| Max. Discharge Continuous Current | 100A | |
| Battery Max. Charge / Discharge Power | 100A/100A | |
| Peak Discharge Current / Power | 200A(5s) | |
| Available SOC Range | 0-100% | |
| Dimension | 480*460*155.5mm | |
| Weight | 42.5kg | |
| Operating Temperature | Charging Temperature:0-50℃ / 32°F~ 122 °F Discharge Temperature:-20-60℃ / -4°F~ 140 °F | |
| Storage Temperature | -10°C~50°C | |
| Working Humidity | 0~90% | |
| Communication | CAN / RS485 | |
| Cycle Life | >6000 | |
| Warranty | 10 Years | |
| IP Rating | IP20 | |
| Certification | IEC62619 / UL1973 / UL9540A / CE-EMC / UN38.3 / FCC | |

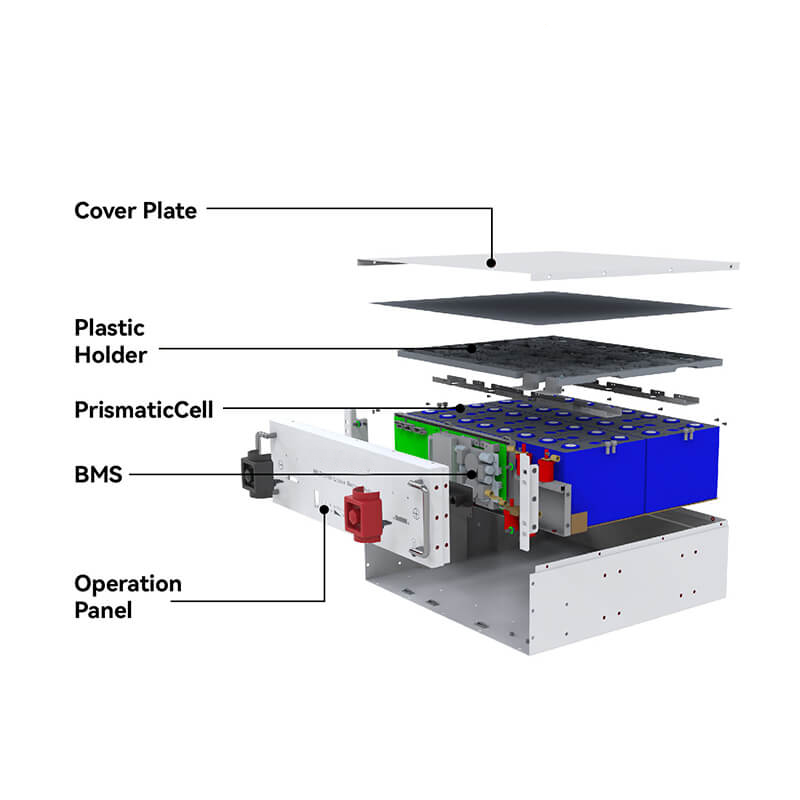

Product Structure
Product Size
Wide Compatibility
Compatible with mainstream brand inverters: Growatt, Deye, Victron, Aiswei, Afore, SRNE, MEGAREVO…
Production Process
Product Packing & Delivery
