20kWh Energy Storage System LiFePO4 Battery Manufacturer

● High Safety：The use of the most advanced lithium iron phosphate battery core technology.

● Easy to Expand: Multi-parallel Configuration, up to 16sets (81.92kWh).

● Long Life：≧6000 cycles.

● Buit-In BMS：Ultra safe Built-in BMS protection.

● Remote access with Bluetooth / WiFi for monitoring, to reduce operation and maintenance costs.

● Certification: IEC62619 / UL1973 / UL9540A / CE-EMC / UN38.3 / FCC.

Capacity:
5.12kWh
Nominal Voltage:
51.2 V
Rated Capacity :
100Ah
Cycle Life :
≥6000
Dimensions (H*W*D) :
480*460*155.5mm
Warranty :
10 Years

INQUIRE NOW

Product Details

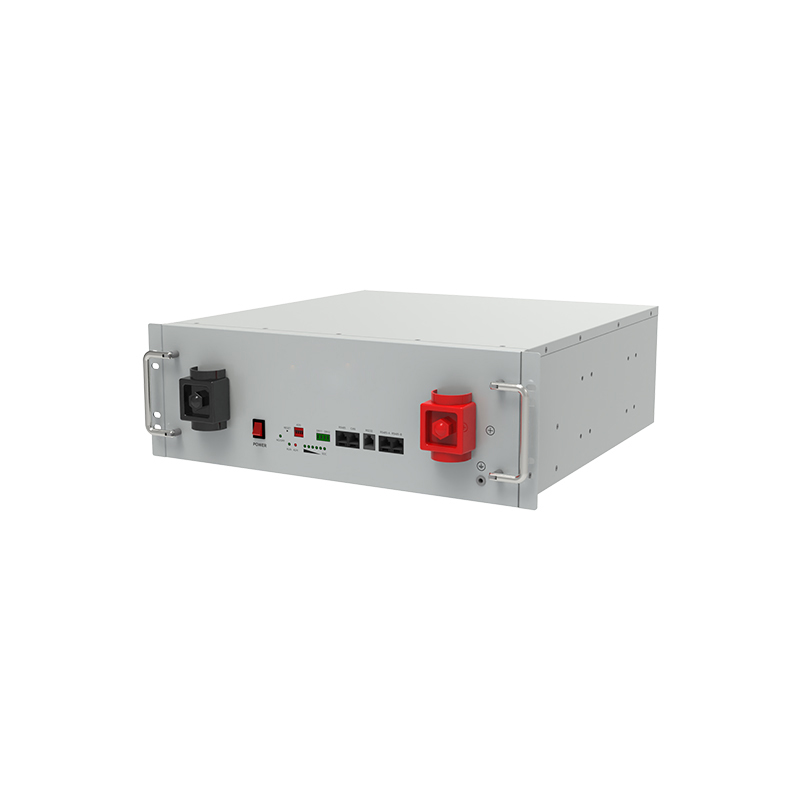

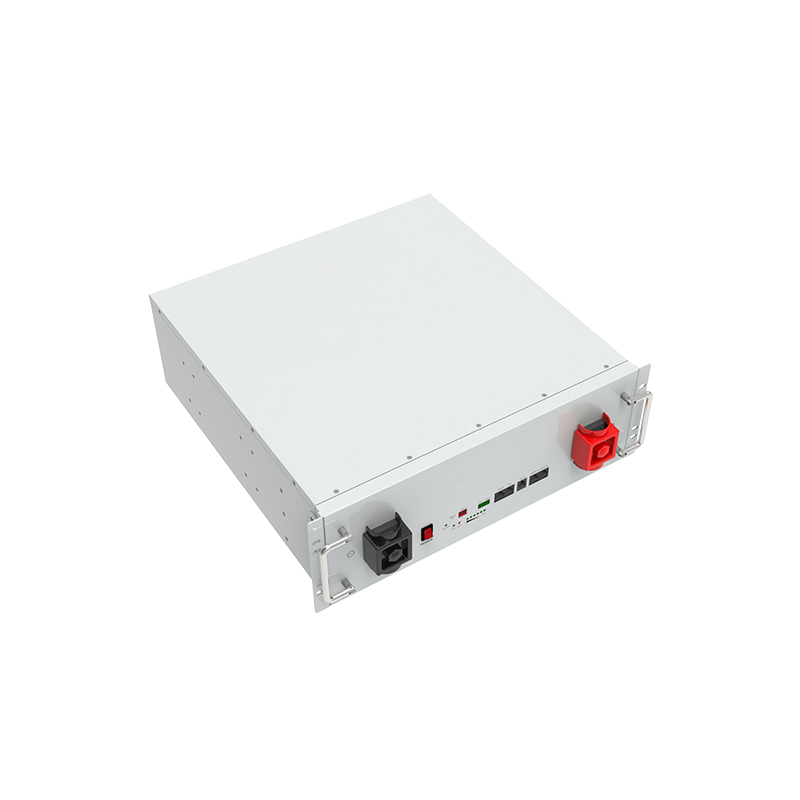

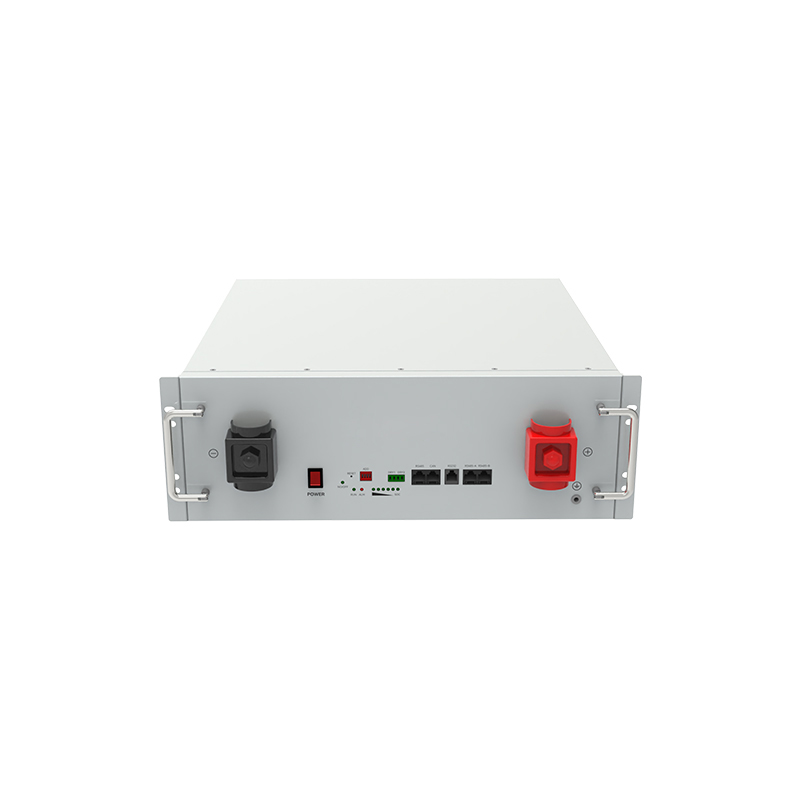

HUANIU 20kWh Energy Storage System LiFePO4 Battery Manufacturer

At HUANIU, we believe in the power of sustainable choices. The UI-YRBLBR series not only optimizes energy production but also contributes to a greener planet. Harness the sun's energy intelligently with technology that aligns with your commitment to a cleaner, brighter future.

Key Features

Remote Control

Real-time control and monitor users' electricity consumption.

Pluy&play Design

Provide users with an optimal economic electricity consumption plan.

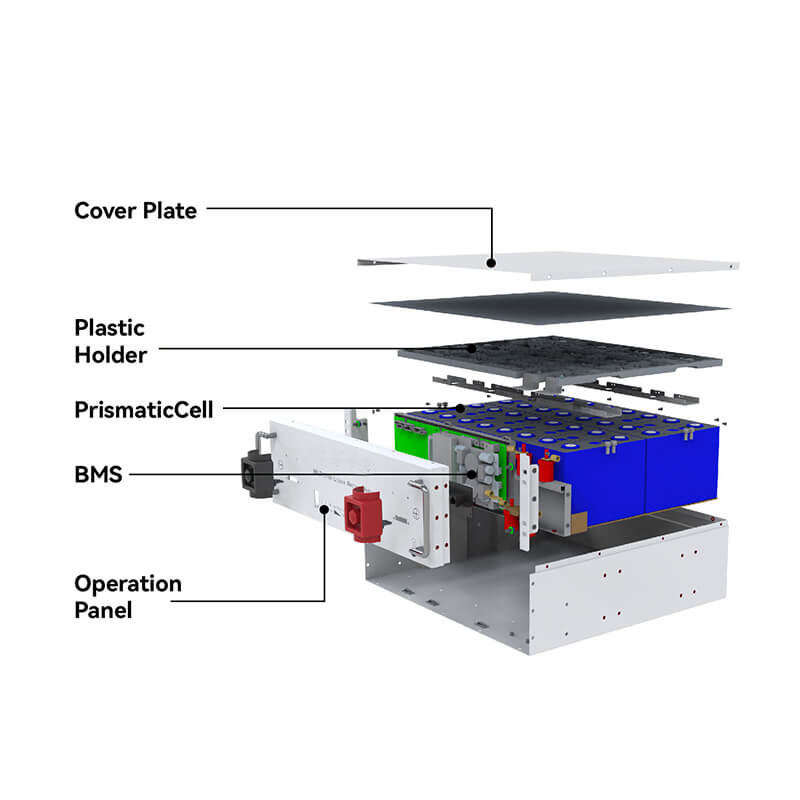

Modular Design

Configure 10kwh/15kwh/20kwh.../81.92kwh, safe&reliable.

Strong Performance

Cold resistance (-20-60 ℃) , high temperature resistance (0-50 ℃)

PARAMETERS

Type	B51100
Battery Type	LiFePO4
Nominal Voltage	51.2 V
Rated Capacity	100 Ah
Capacity	5.12kWh
Rated Charging / Discharging Current	100A/100A
Max. Discharge Continuous Current	100A
Battery Max. Charge / Discharge Power	100A/100A
Peak Discharge Current / Power	200A(5s)
Available SOC Range	0-100%
Dimension	480460155.5mm
Weight	42.5kg
Operating Temperature	Charging Temperature:0-50℃ / 32°F~ 122 °F Discharge Temperature:-20-60℃ / -4°F~ 140 °F
Storage Temperature	-10°C~50°C
Working Humidity	0~90%
Communication	CAN / RS485
Cycle Life	>6000
Warranty	10 Years
IP Rating	IP20
Certification	IEC62619 / UL1973 / UL9540A / CE-EMC / UN38.3 / FCC
