● Uses CATL cells.
● Cycle life: ≥6000 cycles.
● Advanced BMS management.
● Remote management system via app with visual data display.
● Multiple communication interfaces — CAN/RS485/dry contact/Wi-Fi (Wi-Fi Stick module optional).
● Max parallel connections/total capacity: ×16 units (163.84 kWh).
● Compatible with major inverter brands: Growatt, Deye, Victron, Aiswei, Afore, SRNE, MEGAREVO…
● Certifications: UL 1973, UL 9540A, CEC, UN38.3, RoHS, REACH, IEC 62619, IEC 62040, TUV, and UKCA.
Capacity :
10.24kWh
Nominal Voltage:
51.2 V
Nominal Power :
200Ah
Cycle Life:
≥6000
Dimensions (H*W*D) :
550*165*1000mm
Warranty:
10 Years

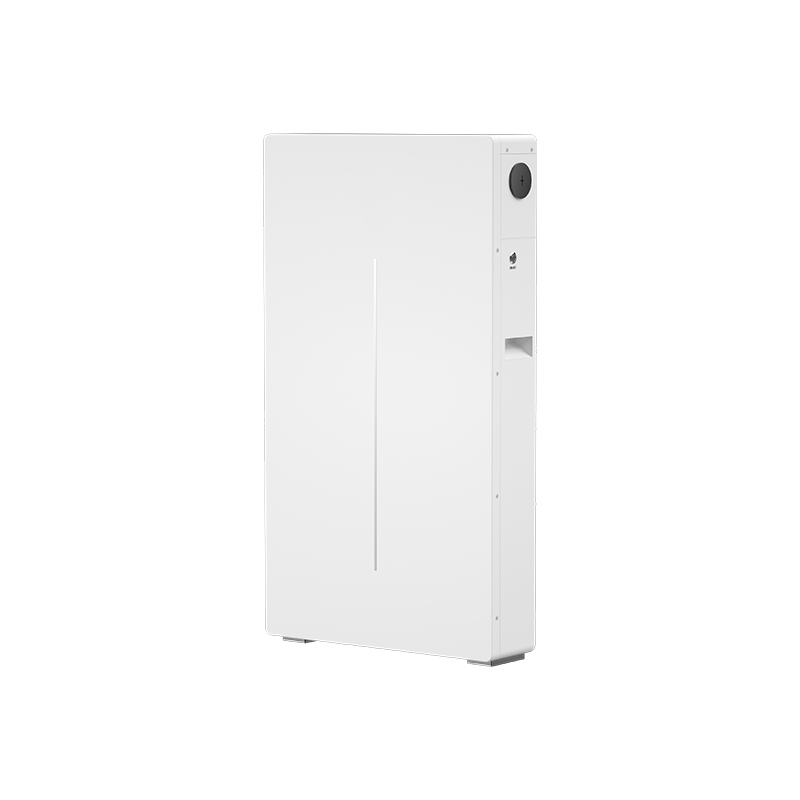

HUANIU 51.2V 200Ah 10kWh OEM LiFePO4 Lithium Battery
Our safest battery, now UL9540A tested.
TYPL-10K-UL Home Battery — one of the first residential batteries to pass the strict UL9540A fire safety test, enabling convenient indoor installation.
Key Feature
Advanced BMS Management
Built-in smart BMS with a maximum continuous charge/discharge current of 120A, delivering over 6,000 cycles and a 10-year warranty, ensuring high performance, excellent efficiency, and long service life.
Lifecycle Cost Management
Thanks to features such as high reliability, long service life, and high energy efficiency of CATL battery systems, "renewable energy + energy storage" offers greater cost advantages per kWh over the entire lifecycle.
Stop paying peak electricity costs.
With a home battery storage system, you can store free renewable energy or charge the battery from the grid at night when electricity costs are low. You can then switch to battery power and use affordable, sustainable energy in your home.
Flexible battery storage solution
Your battery storage project can be designed for an apartment, house, business, community — or anywhere in between. It can be used independently or as part of an energy management ecosystem.
| TYPL-10K | TYPL-10K-UL | |
| Battery Type | CATL | |
| Nominal Power | 200Ah | |
| Nominal Voltage | 51.2V | |
| Capacity | 10.24kWh | |
| Nominal Charge/Discharge Current | 0,6С, 120 А | |
| Max.Continuous Discharge Current | 0,6С, 120 А | |
| Max.Charge/Discharge Power | 6.14 kW / 6.14 kW | |
| Peak Discharge Current/Power | 160A / 8.19kW, 1 min. | |
| Available SOC Range | 0% ~ 100% Recommended 90% DOD | |
| Dimensions | 550*165*867 mm | 550*165*1000 mm |
| Weight | 94 kg | 98 kg |
| Operating Temperature | Charging Temperature: -5°C ~ 55°C / 23°F ~ 131°F Discharging Temperature: -15°C ~ 55°C / 5°F ~ 131°F | |
| Storage Temperature | -15°C ~ 55°C / 5°F ~ 131°F | |
| Operating Humidity | 5% ~ 95% RH (non-condensing) | |
| Altitude | : ≤2000m | |
| Communication | CAN / RS485 / Dry Contact / Wi-Fi (Wi-Fi Stick optional) | |
| Cycle Life | 6000 | |
| Warranty | 10 years | |
| IP Rating | IP65 | |
| Certifications | TUV/IEC 62619/IEC 62040/UN38.3/RoHS/REACH/UKCA/CEC | UL1973 / UL 9540A / UN38.3 / TUV / RoHS / REACH |

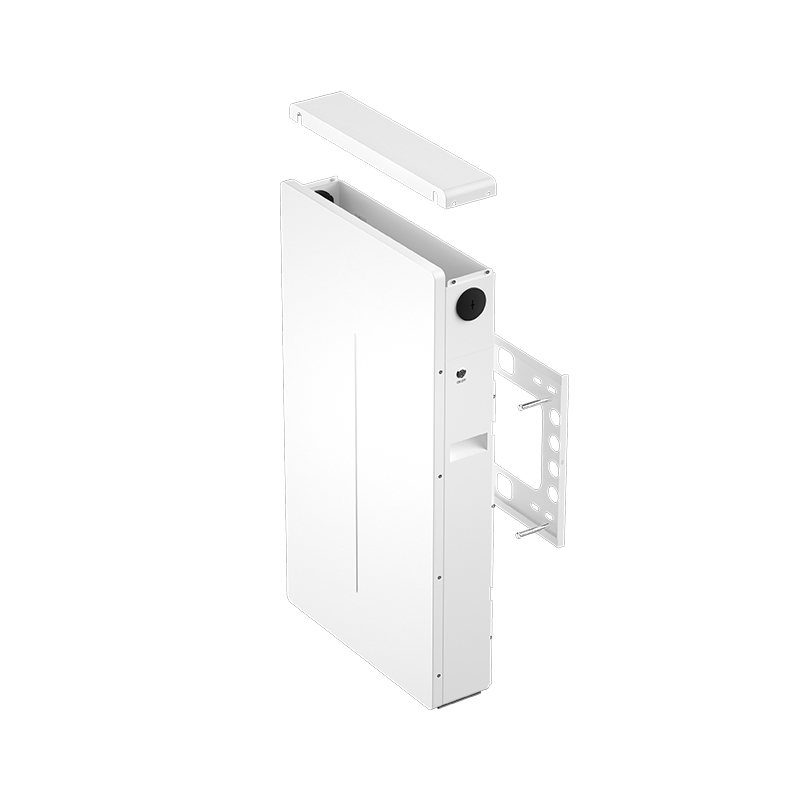

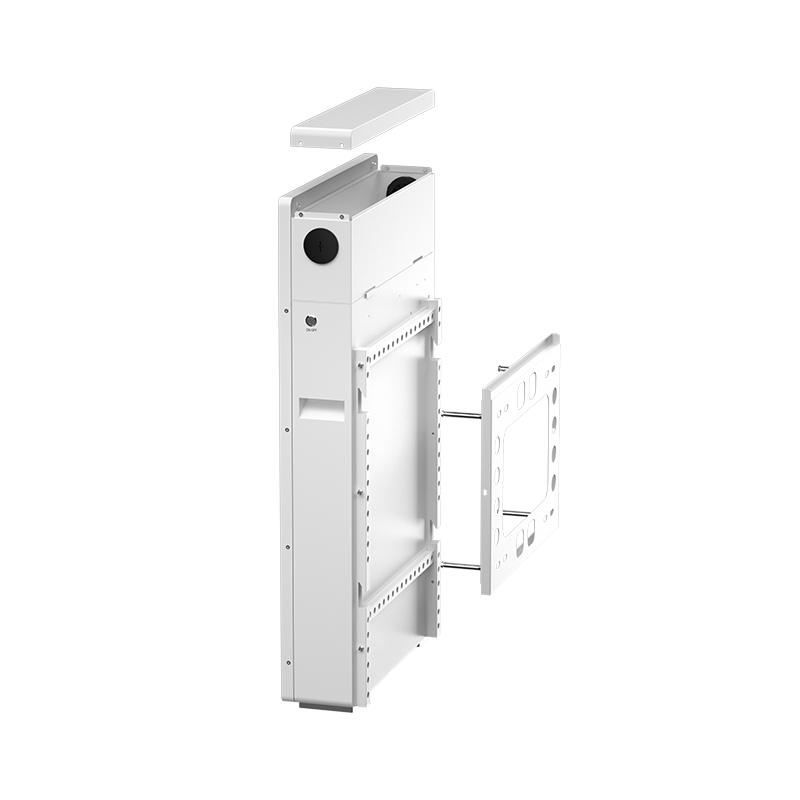

Product Structure Diagram
Broad Compatibility
Compatible with major inverter brands: Growatt, Deye, Victron, Aiswei, Afore, SRNE, MEGAREVO…
