● Premium CATL cells inside.
● Long service life: up to 6000 cycles.
● Advanced BMS management (with active balancing)
● Slim and robust design.
● Communication: supports CAN/RS485/Dry Contact/WiFi (WiFi Stick optional).

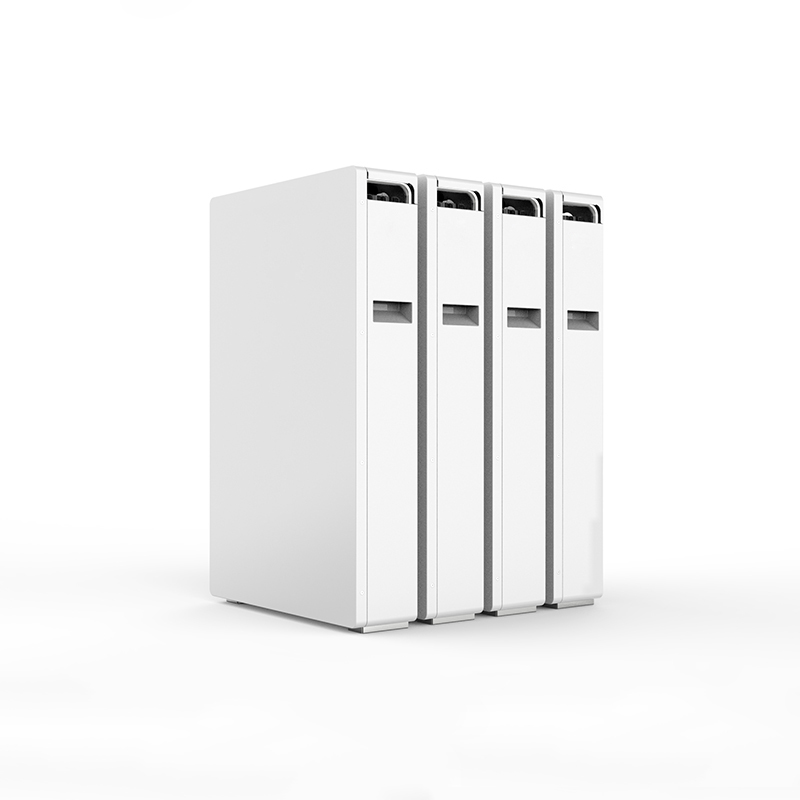

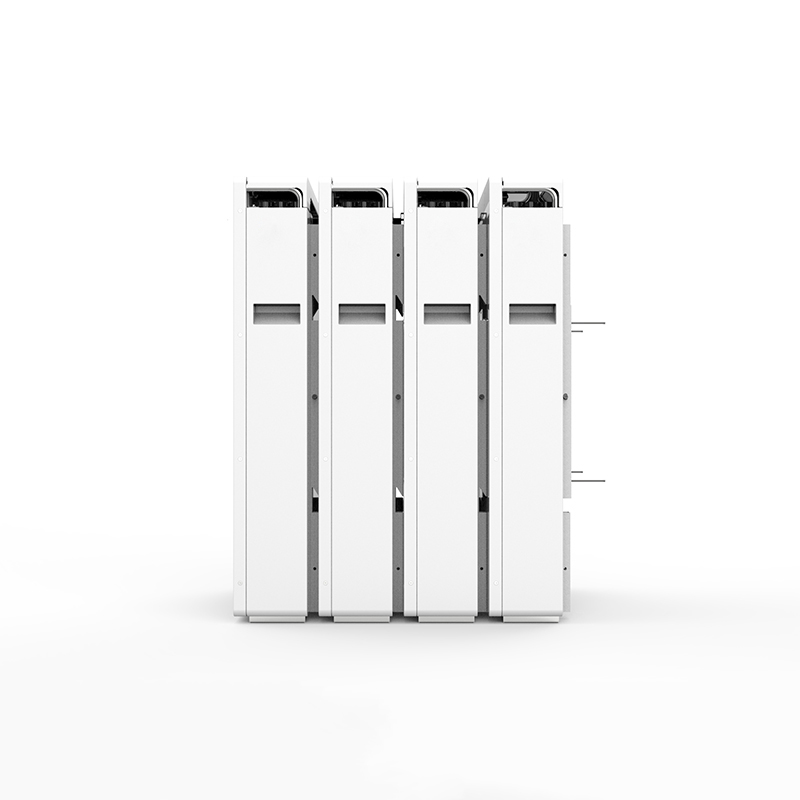

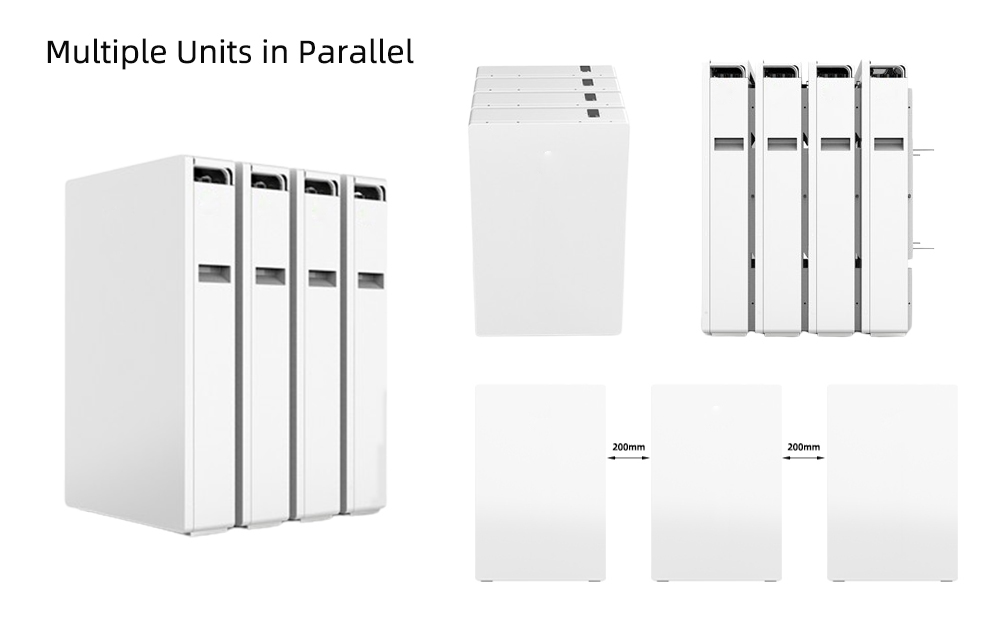

● Multi-parallel configuration, up to 16 units (163.84 kWh).
● Compatible with major inverter brands: Growatt, Deye, Victron, Aiswei, Afore, SRNE, MEGAREVO…
● Certifications: UL 1973, UL 9540A, UN38.3, RoHS, REACH, and TUV.
Capacity :
10.24kWh
Nominal Voltage :
51.2 V
Nominal Power :
200Ah
Cycle Life :
≥6000
Dimensions (H*W*D):
550*165*867mm
Warranty :
10 Years
HUANIU 51.2V 200Ah 10kWh CATL Battery Energy Storage System (BESS)
The TYPL Powerwall is a compact home battery that reduces your dependence on the grid by storing solar energy for use when the sun isn't shining. You can add additional Powerwall units to your system to further reduce your environmental impact and better prepare your home for power outages.
Key Feature
High Safety:
Our advanced BMS provides monitoring, control, and protection for HUANIU Powerwall batteries. You can rely on it and enjoy worry-free energy storage.
Durability:
The HUANIU Powerwall battery, with a cycle life of up to 6000 cycles, is a smart long-term investment.
Sustainability:
Contribute to reducing carbon emissions. HUANIU Powerwall lithium batteries promote cleaner energy use and support a more sustainable environment.
Energy Independence:
Harness the power of the sun! Use the fast charging capability of HUANIU Powerwall LiFePO4 lithium batteries to store excess solar energy during the day and use it at night.
| TYPL-10K | TYPL-10K-UL | |
| Battery Type | CATL | |
| Nominal Power | 200Ah | |
| Nominal Voltage | 51.2V | |
| Capacity | 10.24kWh | |
| Nominal Charge/Discharge Current | 0,6С, 120 А | |
| Max.Continuous Discharge Current | 0,6С, 120 А | |
| Max.Charge/Discharge Power | 6.14 kW / 6.14 kW | |
| Peak Discharge Current/Power | 160A / 8.19kW, 1 min. | |
| Available SOC Range | 0% ~ 100% Recommended 90% DOD | |
| Dimensions | 550*165*867 mm | 550*165*1000 mm |
| Weight | 94kg | 98kg |
| Operating Temperature | Charging Temperature: -5°C ~ 55°C / 23°F ~ 131°F Discharging Temperature: -15°C ~ 55°C / 5°F ~ 131°F | |
| Storage Temperature | -15°C ~ 55°C / 5°F ~ 131°F | |
| Operating Humidity | 5% ~ 95% RH (non-condensing) | |
| Altitude | ≤2000m | |
| Communication | CAN / RS485 / Dry Contact / Wi-Fi (Wi-Fi Stick optional) | |
| Cycle Life | 6000 | |
| Warranty | 10 years | |
| IP Rating | IP65 | |
| Certifications | TUV/IEC 62619/IEC 62040/UN38.3/RoHS/REACH/UKCA/CEC | UL1973 / UL 9540A / UN38.3 / TUV / RoHS / REACH |

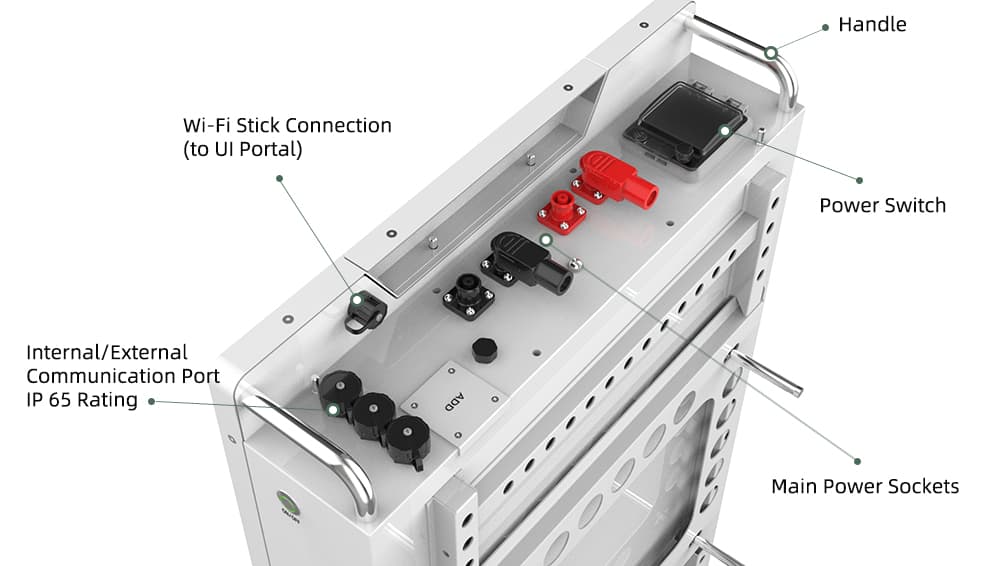

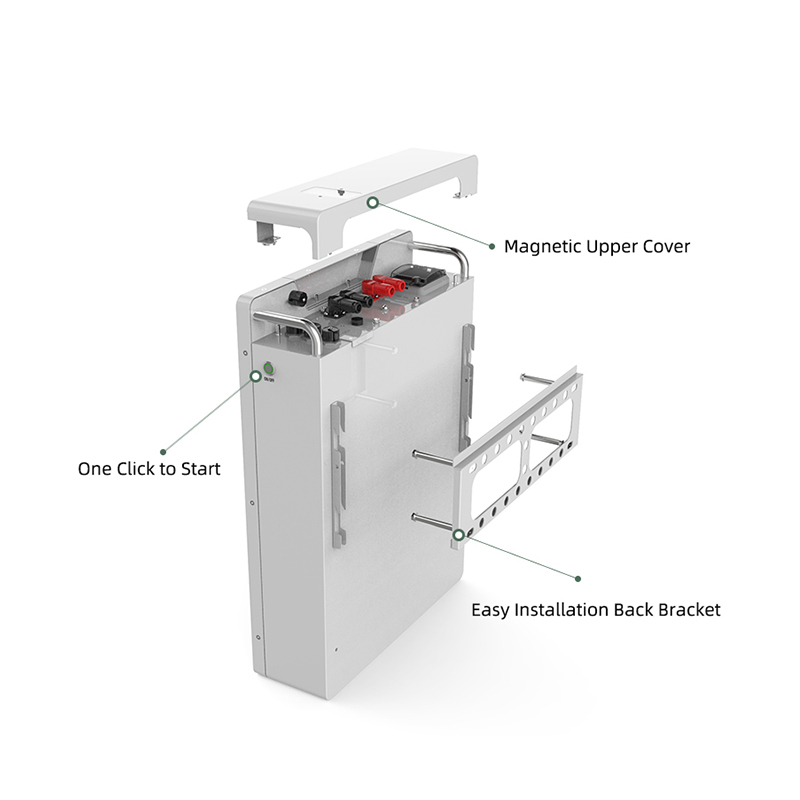

Product Structure Diagram
Broad Compatibility
Compatible with major inverter brands: Growatt, Deye, Victron, Aiswei, Afore, SRNE, MEGAREVO…

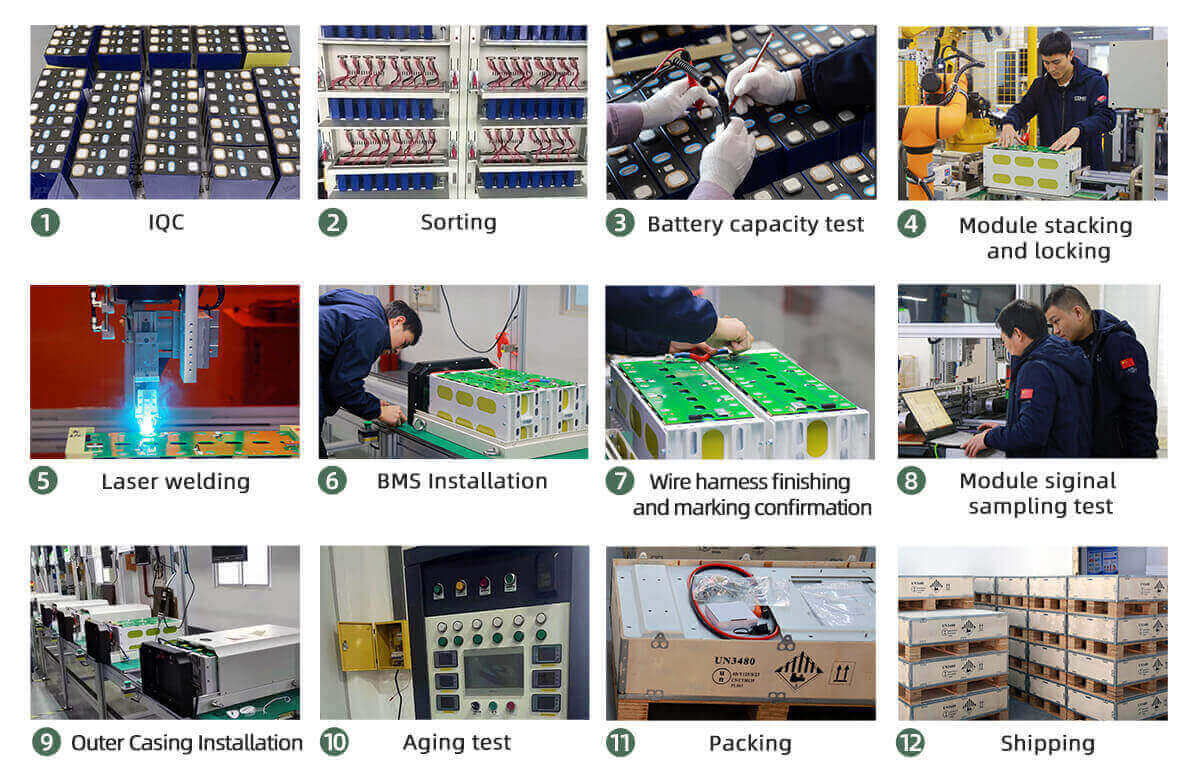

Production Process

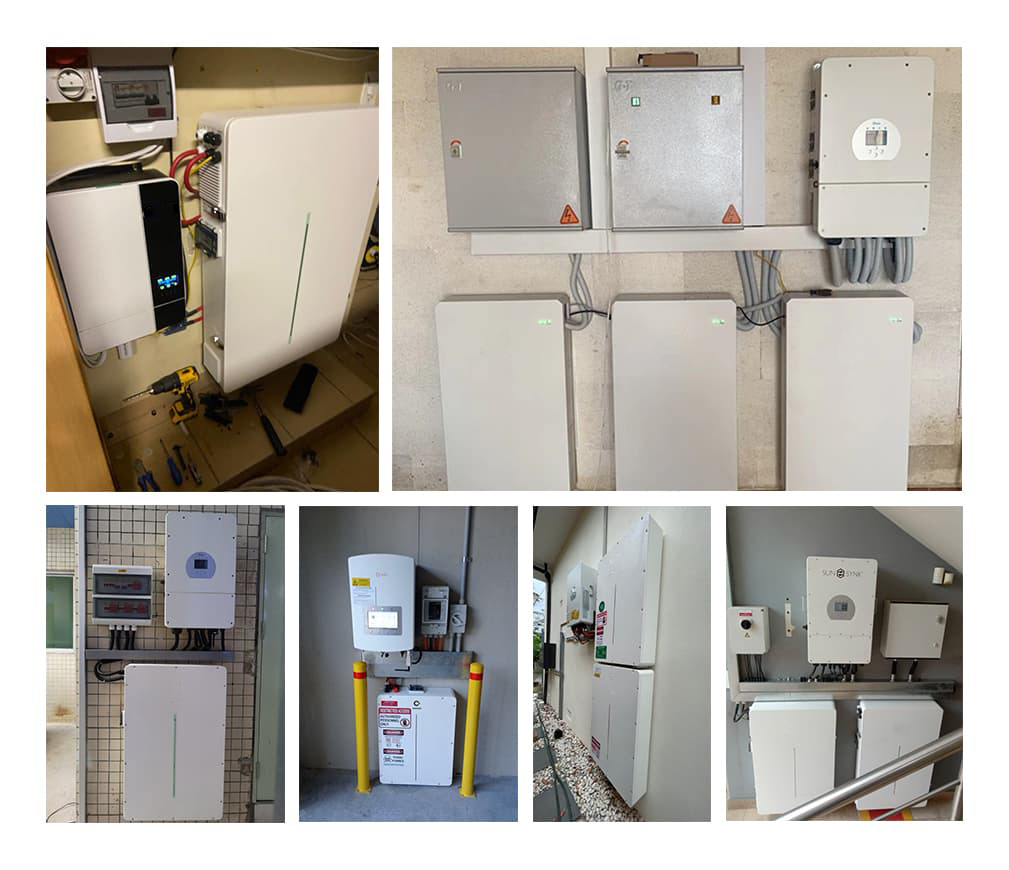

Product Cases
