● High Safety：LiFePO4 technology makes our batteries the safest available.
● Easy to Expand: Multi-parallel Configuration, up to 15sets (153.6 kWh).
● Long Life：≧6000 cycles.
● Buit-In BMS：Ultra safe Built-in BMS protection.
● Matching Inverter Brands: Deye, Luxpower, Senergy, SMA, Solis,etc...
● Remote access with Bluetooth / WiFi for monitoring, to reduce operation and maintenance costs.

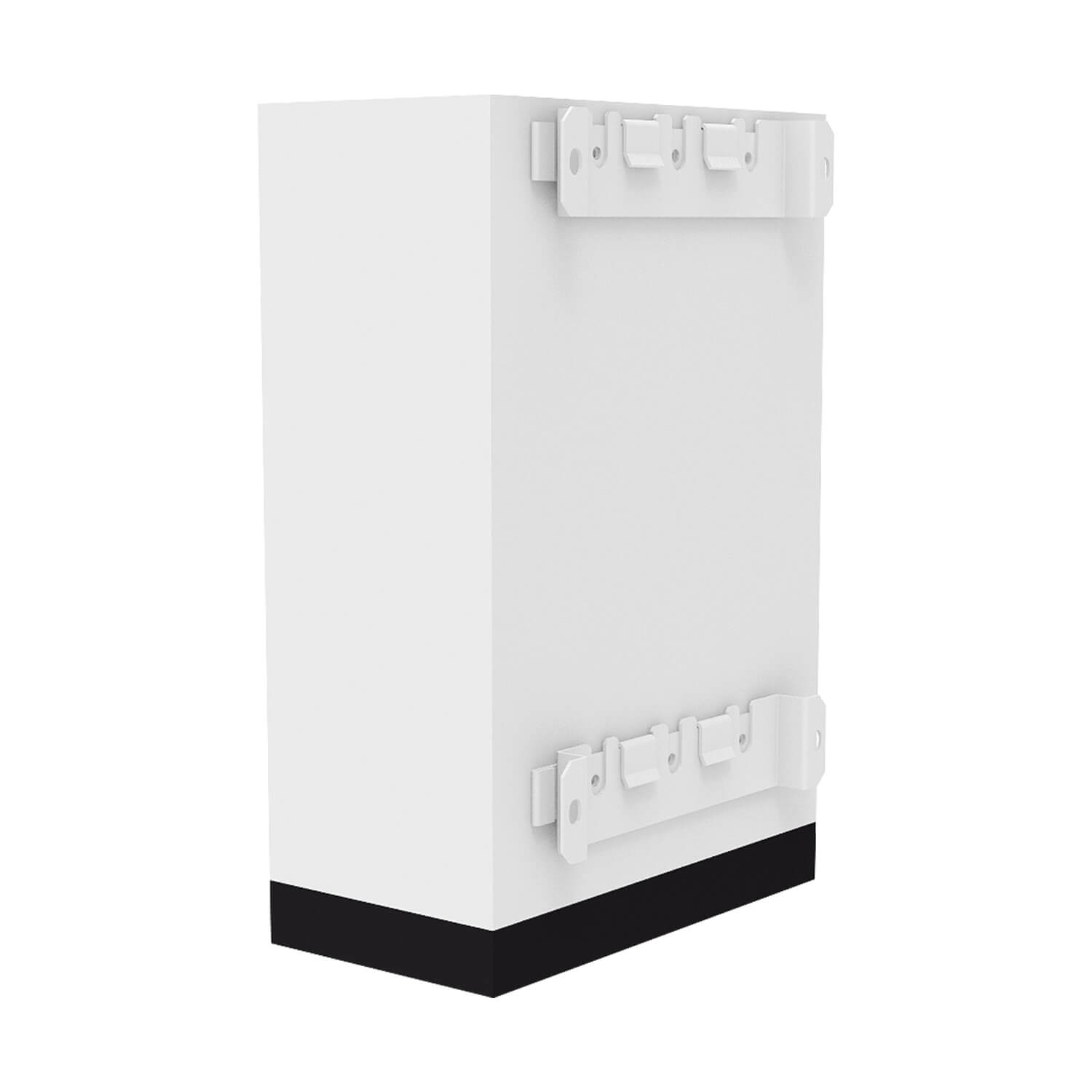

● Floor-standing/Wall-mounted, convenient and easy installation.
Capacity :
10.24kWh
Nominal Voltage :
51.2 V
Rated Capacity :
200Ah
Cycle Life:
≥6000
Dimensions (H*W*D):
421.6*635*258.5mm
Warranty :
5/10 Years

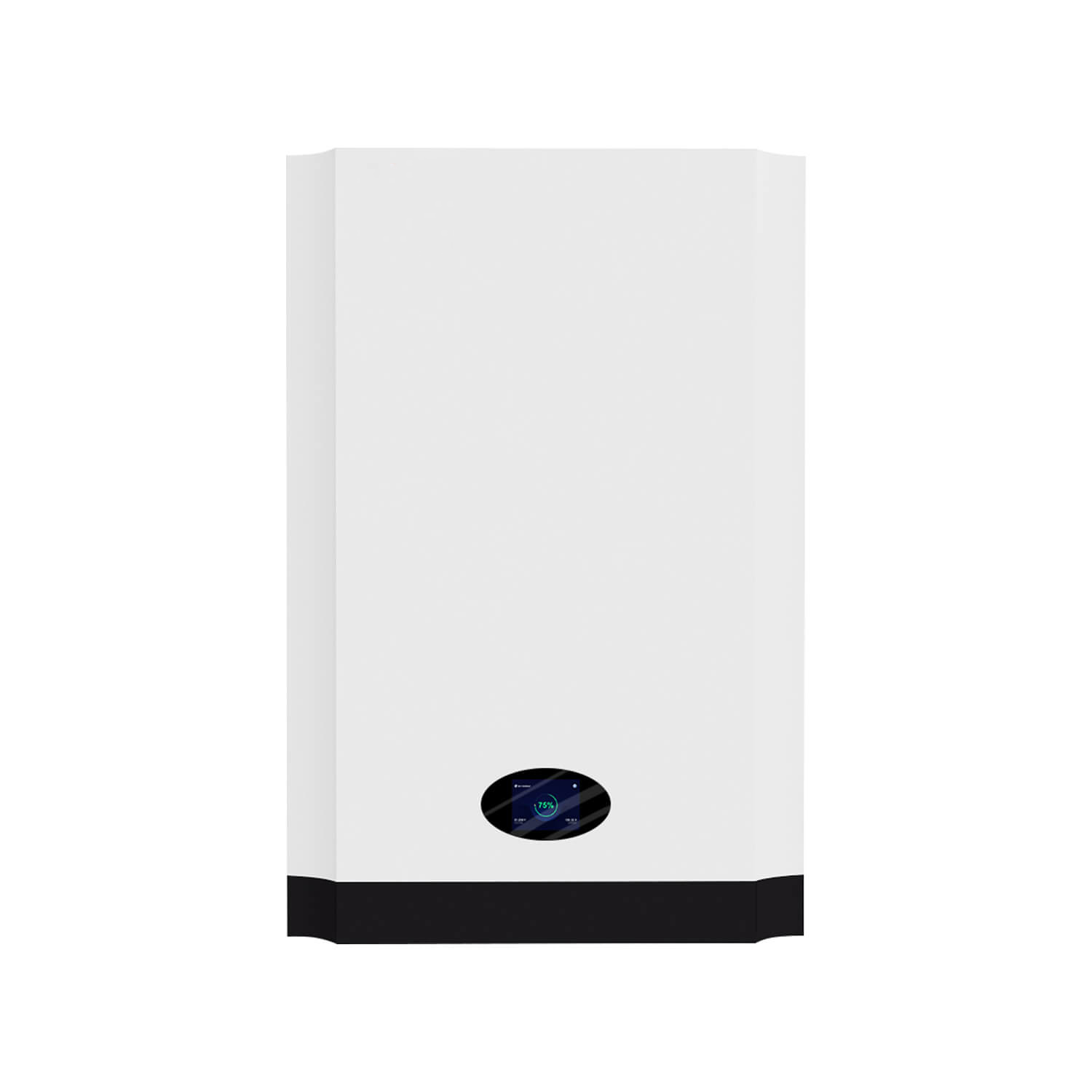

HUANIU WALV 51.2V 200Ah 10kWh Powerwall Lifepo4 Battery Manufacturer
The WALV 10 kWh Solar Energy Storage Battery can be stably connected to a variety of inverters. Long lifespan, up to 6000 cycles. It is one of the best choices for home battery backup; you can choose a single wall mount or multiple parallel connections, WALV Residential Lifepo4 Battery has the experience and advanced technology to provide emergency backup power for your home. It features innovative design, high energy, high power density, long service life, and easy installation and expansion.
Key Features
Premium LFP Cells:
A-grade Lithium Iron Phosphate for top-tier performance and over 6000 cycles.
Expandable Storage:
Connect over 15 units effortlessly to meet evolving energy needs.
Versatile:
Operates in temperatures from 0 to 55℃, suitable for diverse environments.
Intelligent Design:
Built-in BMS, LCD, and RS485/ CAN/ RS232 communication for smart monitoring.
| WALV-5K | WALV-10K | |
| Battery Type | LiFePO4 | |
| Nominal Voltage | 51.2 V | |
| Rated Capacity | 100Ah | 200Ah |
| Capacity | 5.12kWh | 10.24kWh |
| Rated Charging / Discharging Current | 50A | 100A |
| Max. Discharge Continuous Current | 100A（60s） | 100A |
| Battery Max. Charge / Discharge Power | 2.56kW | 5.12kW |
| Peak Discharge Current / Power | 100A/5.12kW,1 min. | 100A/5.12kW |
| Available SOC Range | 95% | 95% |
| Dimension | 421.6*680*172.5mm | 421.6*635*258.5mm |
| Weight | 43 kg | 95kg |
| Operating Temperature | 0℃-55℃ / 32°F~ 131 °F | |
| Storage Temperature | -40℃-55℃ / -40°F~ 131 °F | |
| Working Humidity | 5-95%RH (Non-condensing) | |
| Altitude | <4000m / 13123ft | |
| Communication | CAN / RS485 / RS232 | |
| Cycle Life ( 25℃, 70% DOD) | >6000 | |
| Warranty | 5/10 Years | |
| IP Rating | IP65 | |

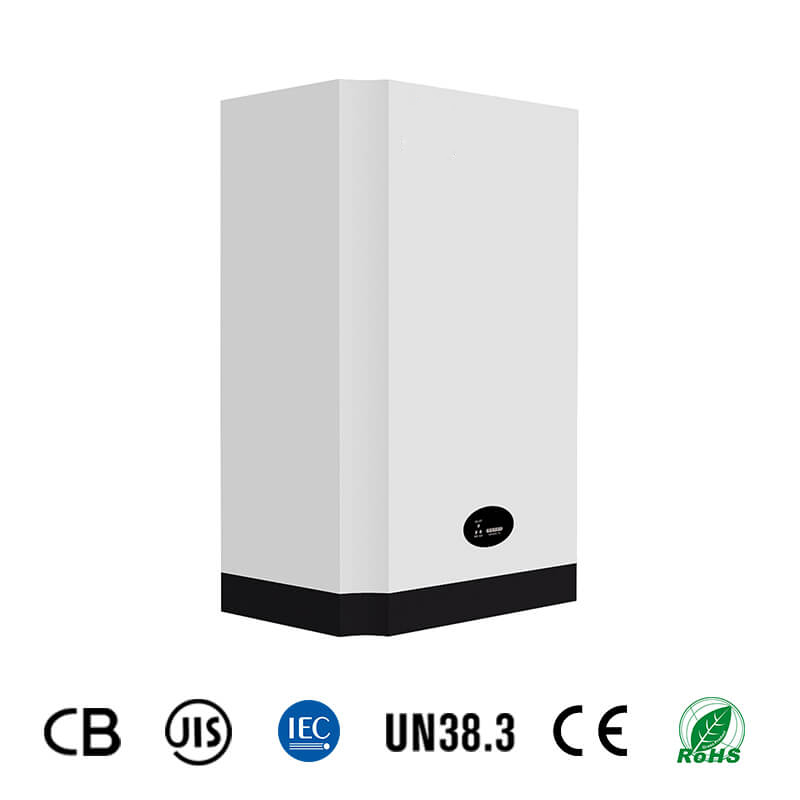

| Certification | CB / JIS / CE / IEC62619 / IEC 63056 / MSDS / ROHS / UN38.3 | |
A battery to stand the test of time
Wide Compatibility
Compatible with mainstream brand inverters: Growatt, Deye, Victron, Aiswei, Afore, SRNE, MEGAREVO…
