Outdoor & Indoor Application (IP55)
Self-heating for Low Ambient Temperatures (Optional)
Remote Monitoring with Over-the-air Updates (Optional)
Automatic parallel configuration
Wide range of inverter capability, from 80 - 750 V
Embedded high accurate SoC / SoH algorithm
Wide range compatible with main-stream inverters, various protocols embedded
Quick stackable plug-in design
Equipped with fire extinguishing system
Capacit :
5.12kWh ~ 30.7kWh
Nominal Voltage:
102.4V~614.4V
Rated Capacity:
50Ah
Cycle Life :
≥6000
Dimensions (H*W*D) :
Single Battery Module: 560*400*503mm
Warranty :
10 Years
5.12kWh - 30.7kWh High-Voltage Energy Storage Solutions
HUANIU offers cutting-edge high-voltage energy storage batteries, designed to provide flexible and robust energy solutions. These batteries feature a modular architecture, allowing customers to easily expand from 1 to 6 modules, adjusting the total energy capacity to meet diverse requirements. The system delivers a high power output ranging from 102.4V to 614.4V, with expandable energy capacity from 5.12kWh to 30.7kWh.
Key Features
Effortless Installation: The quick stackable plug-in design ensures a simple and efficient setup process.
Versatile Applications: With an IP55 rating, the batteries are suitable for both indoor and outdoor use.
Adaptable to Low Temperatures: Optional self-heating feature enables reliable performance in low ambient temperatures.
Remote Management: Optional remote monitoring with over-the-air updates allows for real-time oversight and maintenance.
Seamless Integration: Supports automatic parallel configuration, ensuring smooth scalability
Wide Inverter Compatibility: Compatible with a broad range of inverters (80 - 750 V) and multiple communication protocols.
Precision Monitoring: Embedded with high-accuracy State of Charge (SoC) and State of Health (SoH) algorithms.
Enhanced Safety: Equipped with an integrated fire extinguishing system for maximum safety.
| Model | PLHB-H1-05K1 | PLHB-H1-10K2 | PLHB-H1-15K4 | PLHB-H1-20K5 | PLHB-H1-25K6 | PLHB-H1-30K7 |
| Battery Module Quantity | 1 | 2 | 3 | 4 | 5 | 6 |
| Total Capacity | 50Ah | |||||
| Nominal Voltage | 102.4V | 204.8V | 307.2V | 409.6V | 512V | 614.4V |
| Size,W*D*H mm,inches | 560*400*503, 22.0*15.7*19.8 | 560*400*735 ,22.0*15.7*28.9 | 560*400*967, 22.0*15.7*38.1 | 560*400*1199 22.0*15.7*47.2 | 560*400*1431 22.0*15.7*56.3 | 560*400*1663, 22.0*15.7*65.5 |
| Total Energy | 5.1 kWh | 10.2 kWh | 15.3 kWh | 20.4 kWh | 25.6 kWh | 30.7 kWh |
| Rated Charge / Discharge Current | 30 A,0.6C | |||||
| Weight(to be confirmed) | 89.2 kg,196.7 lbs | 148.1 kg, 196.7 lbs | 207.6 kg, 457.7 lbs | 266.8kg, 588.2 lbs | 326 kg, 718.7 lbs | 385.2kg, 849.2 Ibs |
| Design Cycle Life | 6000, 0.5C at 25 °C, 80% DOD, 80% SOH | |||||
| Operating Temperature | Charging Temperature:-5℃ ~ 55 ℃ / 5 ℉ ~ 131 ℉ Discharge Temperature: -15℃ ~ 55 ℃ / 5 ℉ ~131 ℉ | |||||
| Storage Temperature | -15 ℃ ~ 55 ℃, 5 ℉ ~ 131°F | |||||
| Self-Discharge Rate of Module | ≤2% per month, at 25 ℃ / 77℉ | |||||
| Max.Parallel Capacity | 307 kWh | |||||
| Ingress Protection | IP55, in stacked up state | |||||
| Certificates & Standards | IEC 62619 /EN 61000-6-1& EN 61000-6-3/ UN38.3/ RoHS, REACH | |||||

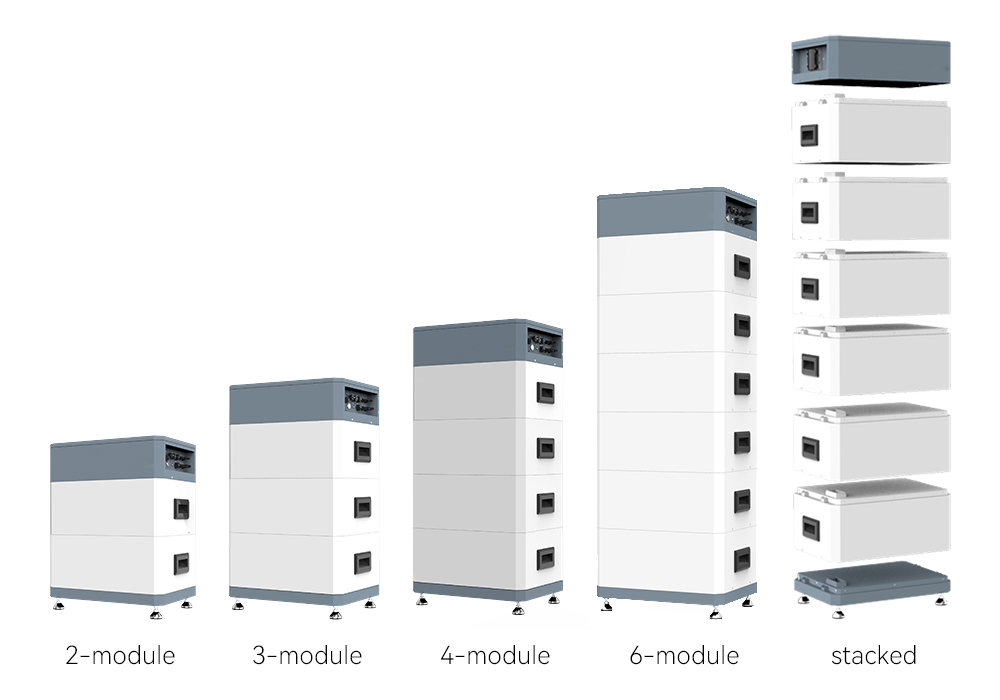

Free Expansion
6 battery modules can be stacked, and up to 30.7kWh of power can be easily obtained.

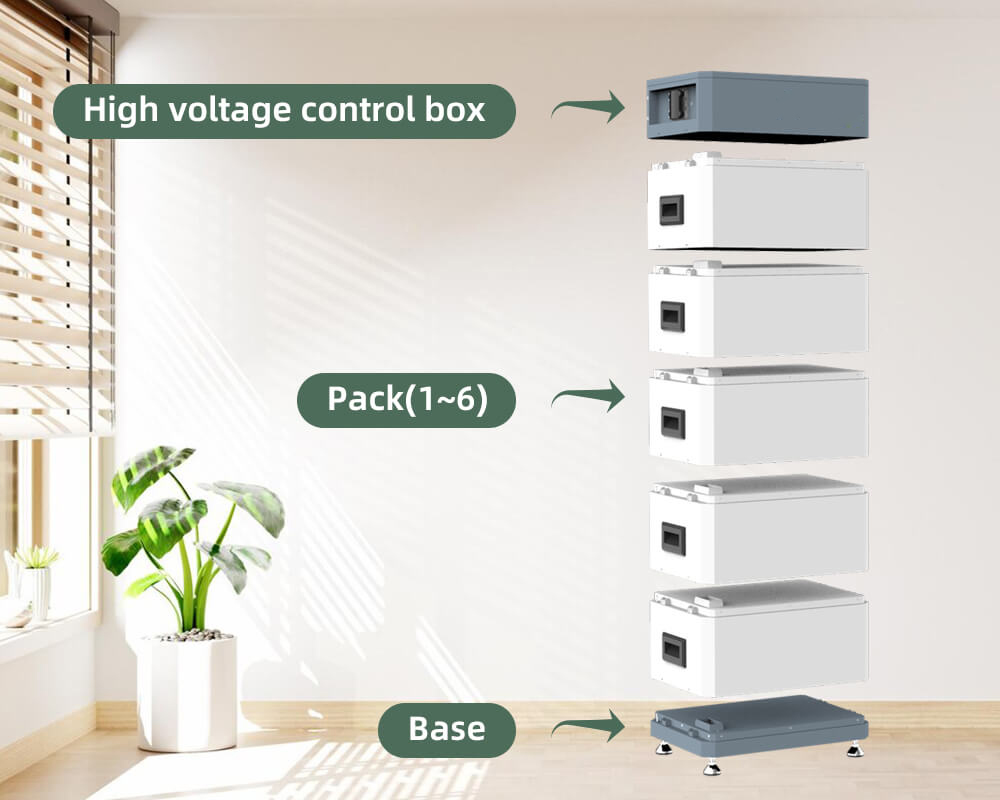

Modular Structure
Wide Compatibility
Compatible with mainstream brand inverters: Growatt, Deye, Victron, Aiswei, Afore, SRNE, MEGAREVO…
